Sinotruk Howo ZZ3257M3447C1 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

ZZ3257M3447C1

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257M3447C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257M3447C1 chassis. Engine: WD615.92 / WD615.93 / WD615.92E / WD615.93E / WD615.92C / WD615.93C / WD615.97C / WD615.97E, gross vehicle weight is 25000 kg, cab seating capacity is  2, wheelbase is 3425+1350 mm, max. speed is 75 km/h, diesel fuel, rated capacity is 12650, 12480 kg, environmental standard is National III / Euro 3, without ABS, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, cargo body is 5200 × 1200 × 2300 mm, curb weight is of the China dump truck 12220, 12390 kg.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

Engine of the China dump truck Sinotruk Howo ZZ3257M3447C1

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257M3447C1

Wheels and Tires

Misc. Specifications

Additional Information

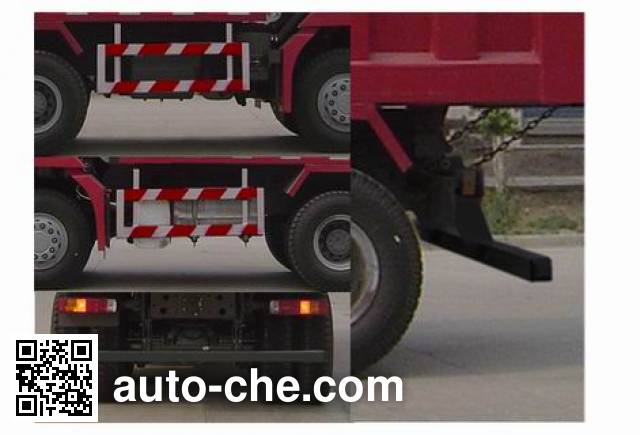

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 170kg. When cartons before the move, the vehicle height 3450mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

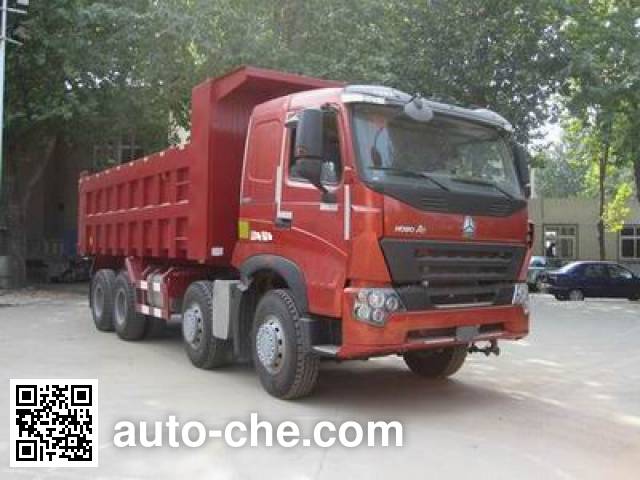

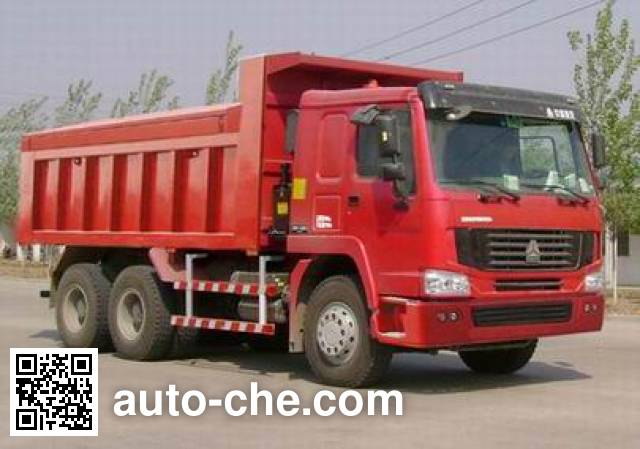

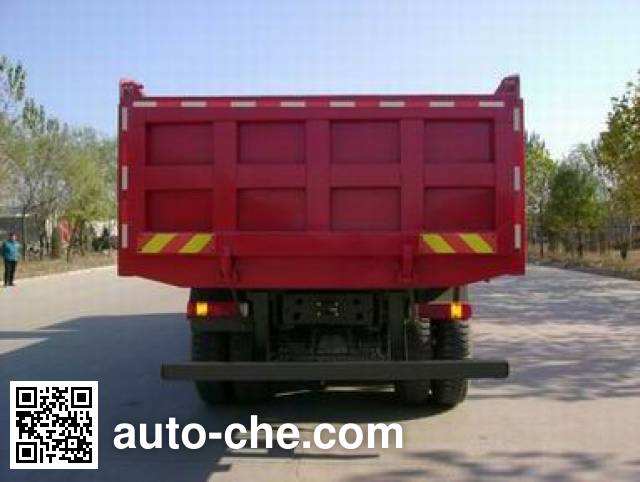

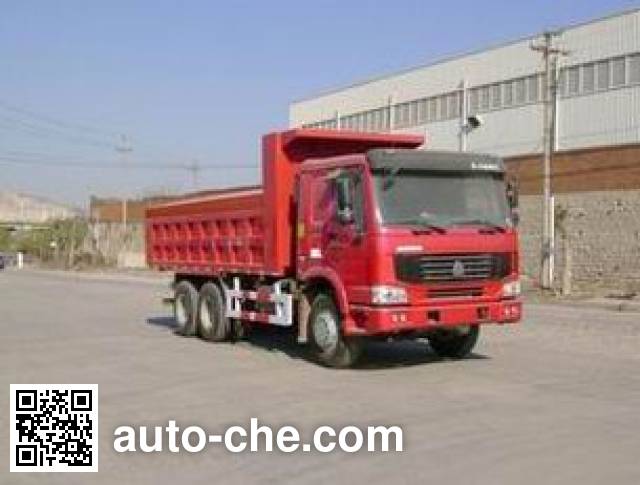

Photo gallery of the China dump truck Sinotruk Howo ZZ3257M3447C1
