Sinotruk Howo ZZ3257M3247N2 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3257M3247N2

ZZ3257M3247N2

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3257M3247N2 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3257M3247N2 chassis. Cab seating capacity is  2, cargo body is 5100 × 1300 × 2300 mm, wheelbase is 3225+1350 mm, rated capacity is 12800 kg, diesel fuel, max. speed is 78 km/h, gross vehicle weight is 25000 kg, without ABS, engine: D10.27-31 / D10.30-31 / WD615.92E / WD615.97E, environmental standard is National III / Euro 3, curb weight is of the China dump truck 12070 kg, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3257M3247N2
Vehicle typeDump truck (tipper truck)
VIN
  • LZZ5ELMB×××××××××
  • LZZ5ELNB×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3257M3247N2

Engine of the China dump truck Sinotruk Howo ZZ3257M3247N2

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1D10.27-319726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2D10.30-319726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3257M3247N2

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7675
Overall width (mm)2496
Overall height (mm)3490
Cargo Body Dimensions
Cargo body length (mm)5100
Cargo body width (mm)1300
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)12800
Curb weight of the China dump truck (kg)12070
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.07
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)3225+1350
Front track (mm)2022, 2041
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1540
Rear overhang (mm)1560
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)29

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3257M3247N2
Number of axles3
Number of tires10
Tires dimension11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3257M3247N2 (dump truck)
Max. speed78
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12

Additional Information

After unloading the car dump way. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

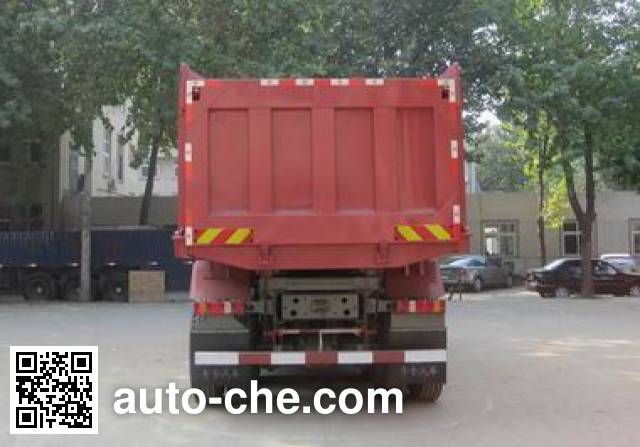

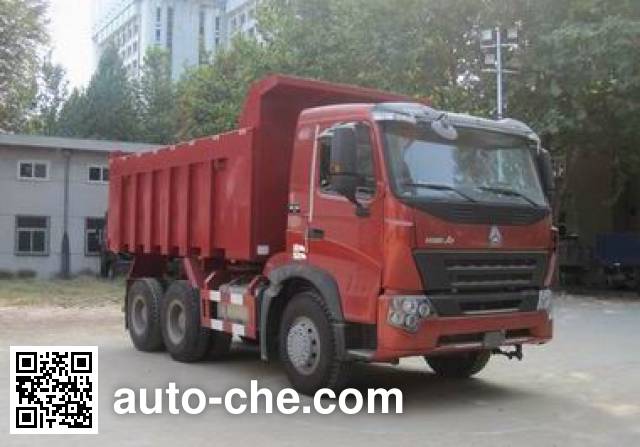

Photo gallery of the China dump truck Sinotruk Howo ZZ3257M3247N2
