howo tipper / dump truck

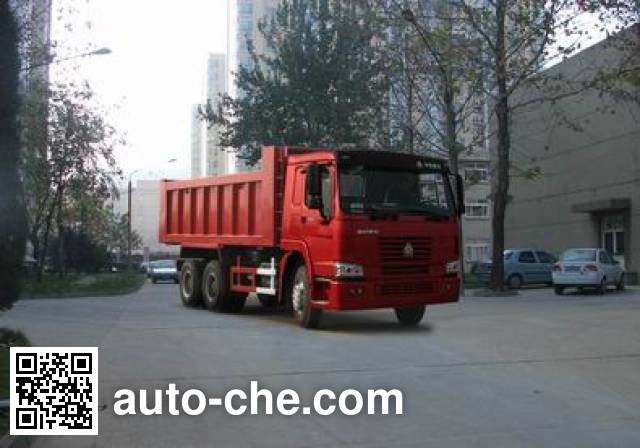

Sinotruk Howo ZZ3227M3847W dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3227M3847W

ZZ3227M3847W

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3227M3847W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3227M3847W chassis. Gross vehicle weight is 22000 kg, cargo body is 5800 × 2300 × 1200/1300 mm, max. speed is 75 km/h, wheelbase is 3825+1350 mm, curb weight is of the China dump truck 10860, 10910 kg, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, cab seating capacity is  2.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3227M3847W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3227M3847W

Engine of the China dump truck Sinotruk Howo ZZ3227M3847W

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3227M3847W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8545
Overall width (mm)2496
Overall height (mm)3170/3386
Cargo Body Dimensions
Cargo body length (mm)5800
Cargo body width (mm)2300
Cargo body height (mm)1200/1300
Weights, Ground Pressure
Curb weight of the China dump truck (kg)10860, 10910
Gross vehicle weight (kg)22000
Load factor (payload to weight ratio)1.03, 1.02
Axle load distribution (kg)6000/16000  (tandem axle)
Wheel Base
Wheelbase (mm)3825+1350
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1870
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3227M3847W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3227M3847W (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 310kg.
(Note: possible inaccuracies)
