Sinotruk Howo ZZ3207N3247C2 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

ZZ3207N3247C2

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3207N3247C2 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3207N3247C2 chassis. Without ABS, engine: WD615.95 / WD615.96 / WD615.95E / WD615.96E / WD615.95C / WD615.96C, cab seating capacity is  2, environmental standard is National III / Euro 3, max. speed is 75 km/h, wheelbase is 3225+1350 mm, rated capacity is 9960 kg, cargo body is 5400/5100 × 990 × 2300 mm, diesel fuel, curb weight is of the China dump truck 9910 kg, gross vehicle weight is 20000 kg, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

Engine of the China dump truck Sinotruk Howo ZZ3207N3247C2

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3207N3247C2

Wheels and Tires

Misc. Specifications

Additional Information

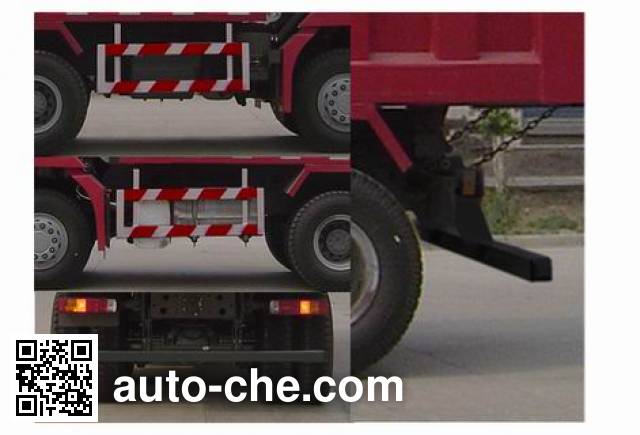

Vehicle length and box long rear overhang, departure angle parameter correspondence. Container dump mode after unloading. When cartons before the move, the vehicle height 3450mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

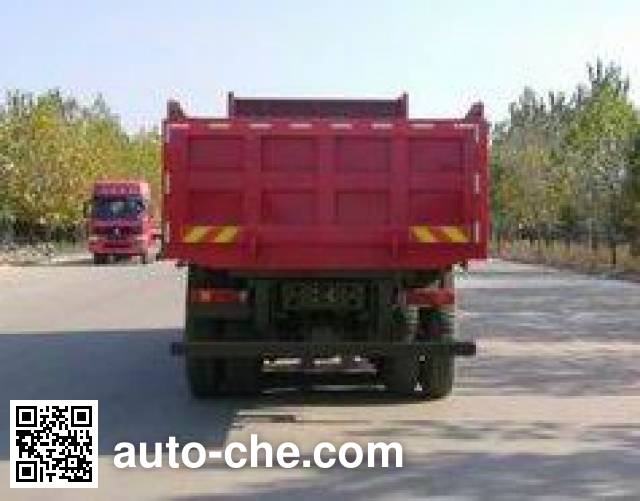

Photo gallery of the China dump truck Sinotruk Howo ZZ3207N3247C2
