ZZ3207M3647C1
Sinotruk Howo Chinese dump truck (tipper truck) ZZ3207M3647C1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China dump truck Sinotruk Howo Vehicle Overview Engine of the China dump truck Sinotruk Howo ZZ3207M3647C1 # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3207M3647C1 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 8145 Overall width (mm) 2496 Overall height (mm) 3170/3450 Cargo Body Dimensions Cargo body length (mm) 5400 Cargo body width (mm) 990 Cargo body height (mm) 2300 Weights, Ground Pressure and Capacity Rated capacity (kg) 9980 Curb weight of the China dump truck (kg) 10030 Gross vehicle weight (kg) 20140 Load factor (payload to weight ratio) 1.00 Axle load distribution (kg) 6000/14140 (tandem axle) Wheel Base and Track Wheelbase (mm) 3625+1350 Front track (mm) 2022, 2041 Rear track (mm) 1830/1830 Front and Rear Overhang Front overhang (mm) 1500 Rear overhang (mm) 1670 Angle of Approach and Departure Angle of approach (deg.) 19 Angle of departure (deg.) 26
Wheels and Tires Tires and Wheels of the China dump truck Sinotruk Howo ZZ3207M3647C1 Number of axles 3 Number of tires 10 Tires dimension 11.00-20, 11.00R20, 12.00-20, 12.00R20
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ3207M3647C1 (dump truck) Max. speed 75 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs 10 / 12, 10 / -

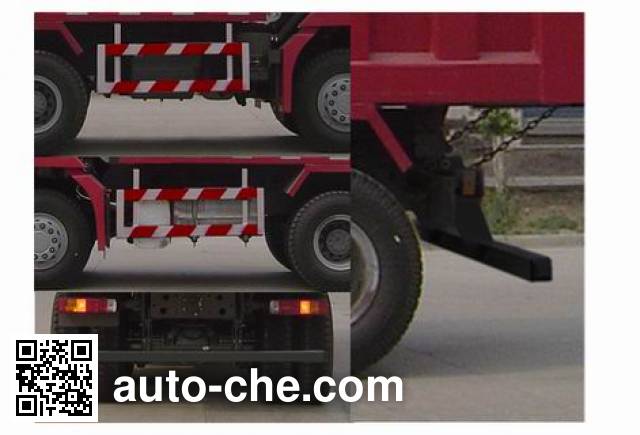

Additional Information Container dump mode after unloading. When cartons before the move, the vehicle height 3450mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

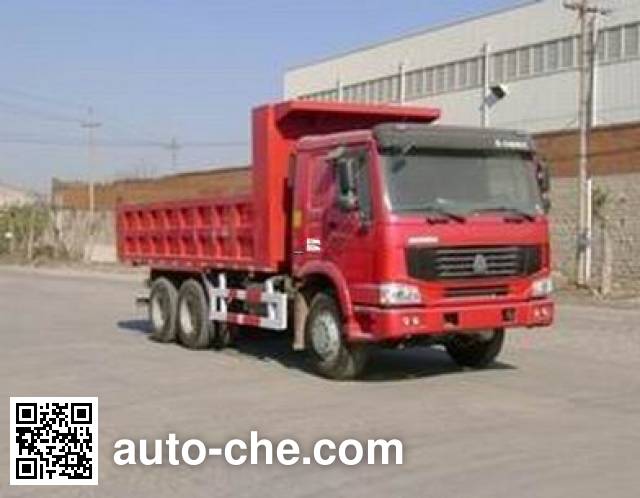

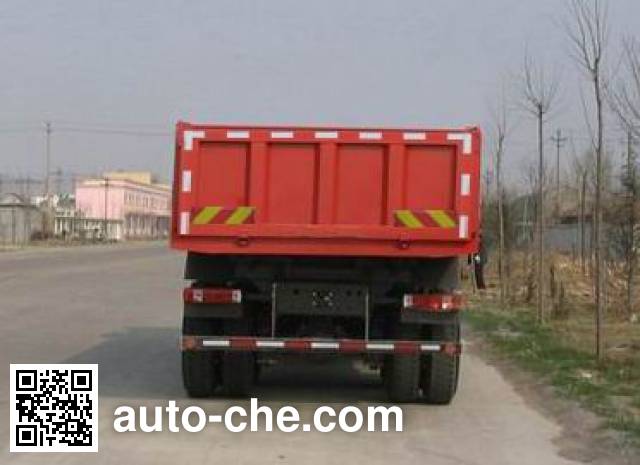

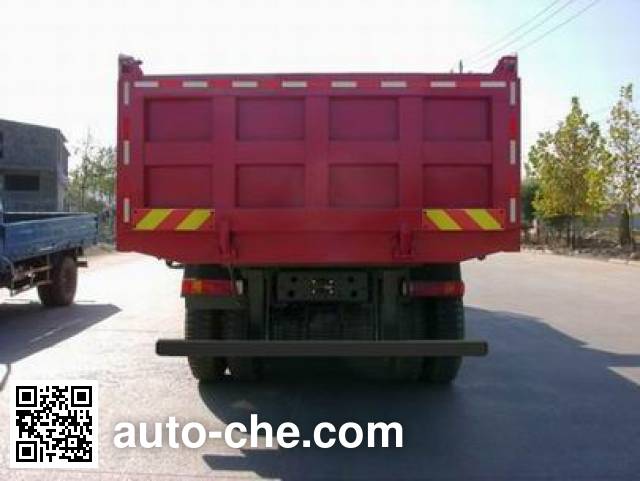

Photo gallery of the China dump truck Sinotruk Howo ZZ3207M3647C1 See Also Sinotruk Howo ZZ3257M3647C1 (dump truck)
