howo tipper / dump truck

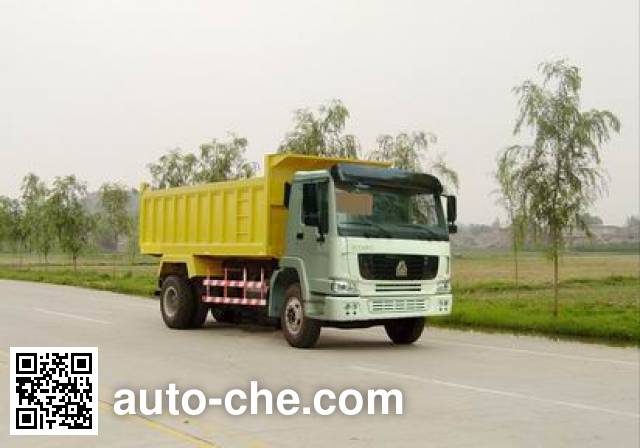

Sinotruk Howo ZZ3167M4611 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo dump truck ZZ3167M4611

ZZ3167M4611

Sinotruk Howo Chinese dump truck (tipper truck) ZZ3167M4611 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3167M4611 chassis. Curb weight is of the China dump truck 8000 kg, cargo body is 5410 × 2300 × 800 mm, cab seating capacity is  2, wheelbase is 4600 mm, gross vehicle weight is 16000 kg, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ3167M4611
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3167M4611

Engine of the China dump truck Sinotruk Howo ZZ3167M4611

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sinotruk Howo ZZ3167M4611

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8127
Overall width (mm)2496
Overall height (mm)3150
Cargo Body Dimensions
Cargo body length (mm)5410
Cargo body width (mm)2300
Cargo body height (mm)800
Weights, Ground Pressure
Curb weight of the China dump truck (kg)8000
Gross vehicle weight (kg)16000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)6000/10000
Wheel Base
Wheelbase (mm)4600
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)2027
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)22

Wheels and Tires

Tires and Wheels of the China dump truck Sinotruk Howo ZZ3167M4611
Number of axles2

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ3167M4611 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 280kg.Only two types of optional car chassis WD615.62 or WD615.87 engines.
(Note: possible inaccuracies)
