ZZ1317N4667W

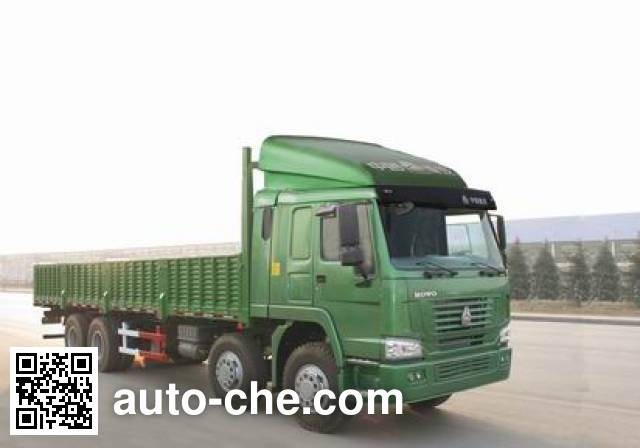

Sinotruk Howo Chinese cargo truck ZZ1317N4667W manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China truck Sinotruk Howo Vehicle Overview Engine of the China truck Sinotruk Howo ZZ1317N4667W Engine Specifications of the China truck Engine Model WD615.69 / WD615.69 / WD615.47 Engine displacement (cc) 9726 / 9726 / 9726 Engine power (kW) 247 / 247 / 273
Dimensions and Weights of the China truck Sinotruk Howo ZZ1317N4667W Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 11984 Overall width (mm) 2496 Overall height (mm) 3115/3785 Cargo Body Dimensions Cargo body length (mm) 9280 Cargo body width (mm) 2326 Cargo body height (mm) 600/800 Weights, Ground Pressure Curb weight of the China truck (kg) 13420, 13560 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.29 Axle load distribution (kg) 6500/7000/17500 (tandem axle) Wheel Base Wheelbase (mm) 1800+4600+1350, 1800+4575+1400 Front and Rear Overhang Front overhang (mm) 1500 Rear overhang (mm) 2734, 2709 Angle of Approach and Departure Angle of approach (deg.) 16 Angle of departure (deg.) 14
Wheels and Tires Tires and Wheels of the China truck Sinotruk Howo ZZ1317N4667W Number of axles 4
Misc. Specifications Miscellaneous Specifications Sinotruk Howo ZZ1317N4667W (cargo truck) Max. speed 90, 102 Cab seating capacity 2 Steering steering wheel
Additional Information The car may not optional cover.(Note: possible inaccuracies)
