Sinotruk Howo ZZ1257V404SD1 truck chassis manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo truck chassis ZZ1257V404SD1

ZZ1257V404SD1

Sinotruk Howo Chinese truck chassis ZZ1257V404SD1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including truck chassis). Engine: MC11.32-40 / MC11.36-40 / MC11.40-40, tires are 12.00R20 14PR, 12.00-20 16PR, curb weight is of the China truck chassis 9980 kg, gross vehicle weight is 25000 kg, with ABS, max. speed is 90 km/h, wheelbase is 3825+1350, 4025+1350 mm.

Technical Specifications of the China truck chassis Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ1257V404SD1
Vehicle typeTruck chassis
VIN
  • LZZ1BLND×××××××××
  • LZZ1BLSD×××××××××
  • LZZ1BLVD×××××××××
  • LZZ1BLNE×××××××××
  • LZZ1BLSE×××××××××
  • LZZ1BLVE×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.

Engine of the China truck chassis Sinotruk Howo ZZ1257V404SD1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1MC11.32-4010518 cc238 kW (324 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2MC11.36-4010518 cc268 kW (365 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3MC11.40-4010518 cc297 kW (404 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Dimensions and Weights of the China truck chassis Sinotruk Howo ZZ1257V404SD1

Dimensions and Weight Specifications of the China truck chassis
Overall Dimensions of the China truck chassis
Overall length (mm)8055/8565
Overall width (mm)2496
Overall height (mm)3430
Weights, Ground Pressure
Curb weight of the China truck chassis (kg)9980
Gross vehicle weight (kg)25000
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)3825+1350, 4025+1350
Front track (mm)2022
Rear track (mm)1830/1830
Front/rear overhang (mm)1480/1400, 1480/1710
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)32

Wheels and Tires

Tires and Wheels of the China truck chassis Sinotruk Howo ZZ1257V404SD1
Number of axles3
Number of tires10
Tires dimension12.00R20 14PR, 12.00-20 16PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ1257V404SD1 (truck chassis)
Max. speed90
ABShave
Leaf springs9 / 12

Additional Information

Dimensions length and rear overhang, the wheelbase parameters one by one. MC11.32-40 net power of the engine is 235kW, MC11.36-40 net power of the engine is 265kW, MC11.40-40 net power of the engine is 294kW. When Wheelbase (mm) for the 3825 + 1350, the engine MC11.32-40 corresponding VIN is LZZ1BLND ×××××××××, engine MC11.36-40 corresponding VIN is LZZ1BLSD ×××××× ×××, engine MC11.40-40 corresponding VIN is LZZ1BLVD ×××××××××; when Wheelbase (mm) 4025 + 1350, the engine MC11.32-40
(Note: possible inaccuracies)

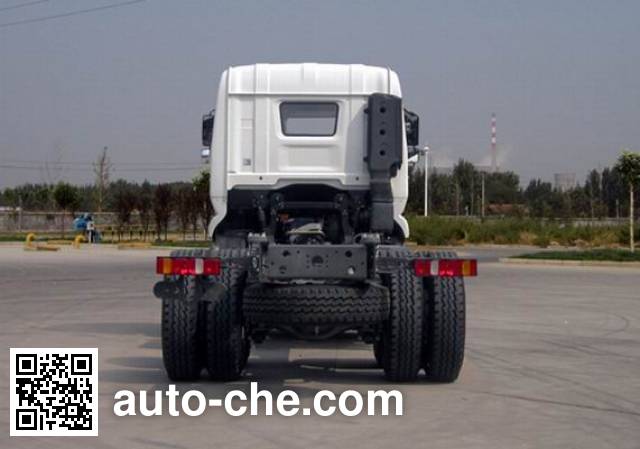

Photo gallery of the China truck chassis Sinotruk Howo ZZ1257V404SD1

Sinotruk Howo truck chassis ZZ1257V404SD1 Sinotruk Howo truck chassis ZZ1257V404SD1
