Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

howo cargo truck

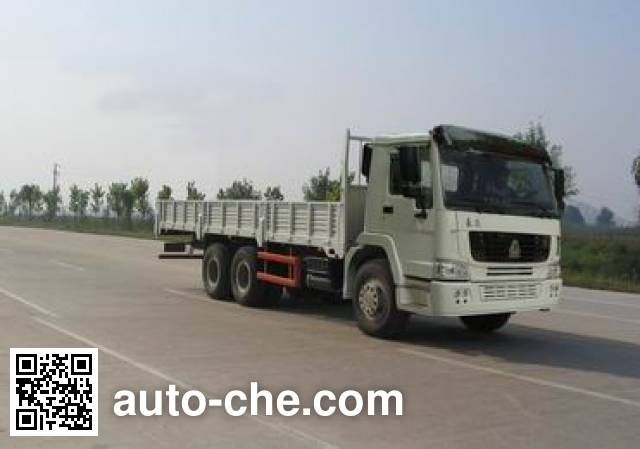

Sinotruk Howo ZZ1257M3641 cargo truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sinotruk Howo cargo truck ZZ1257M3641

ZZ1257M3641

Sinotruk Howo Chinese cargo truck ZZ1257M3641 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including cargo trucks); the cargo truck based on ZZ1257M3641 chassis. Curb weight is of the China truck 10450, 10550 kg, cab seating capacity is  2, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, wheelbase is 3625+1350, 3600+1400 mm, cargo body is 5800 × 2326 × 600/800 mm, max. speed is 90, 102 km/h, gross vehicle weight is 25000 kg.

Technical Specifications of the China truck Sinotruk Howo

Vehicle Overview

MakeSinotruk Howo
Vehicle modelZZ1257M3641
Vehicle typeCargo truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1257M3641

Engine of the China truck Sinotruk Howo ZZ1257M3641

Engine Specifications of the China truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China truck Sinotruk Howo ZZ1257M3641

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)8222
Overall width (mm)2496
Overall height (mm)3048
Cargo Body Dimensions
Cargo body length (mm)5800
Cargo body width (mm)2326
Cargo body height (mm)600/800
Weights
Curb weight of the China truck (kg)10450, 10550
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.37
Wheel Base
Wheelbase (mm)3625+1350, 3600+1400
Front and Rear Overhang
Front overhang (mm)1500
Rear overhang (mm)1747, 1722
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China truck Sinotruk Howo ZZ1257M3641
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sinotruk Howo ZZ1257M3641 (cargo truck)
Max. speed90, 102
Cab seating capacity2
Steeringsteering wheel

Additional Information

The reflective marking should be installed at the rear of vehicle body.
(Note: possible inaccuracies)
