Sinotruk Hohan Chinese dump truck (tipper truck) ZZ3255M3843E1L manufactured by Sinotruk Jining Commercial Vehicle Co., Ltd. (a manufacturing enterprise in Jining, Shandong Province, China; manufactures a range of Sinotruk Hohan, Sinotruk Hania vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3255M3843E1L chassis. With ABS, cab seating capacity is 2, liquefied natural gas, max. speed is 75 km/h, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, 315/80R22.5 16PR, environmental standard is GB17691-2005 National V / Euro 5, GB18285-2005, GB11340-2005, gross vehicle weight is 25000 kg, cargo body is 5400/5600 × 1200 × 2300 mm, curb weight is of the China dump truck 12100 kg, rated capacity is 12770 kg, engine: MT07.26-50 / MT07.29-50, wheelbase is 3825+1350 mm.
Technical Specifications of the China dump truck Sinotruk Hohan

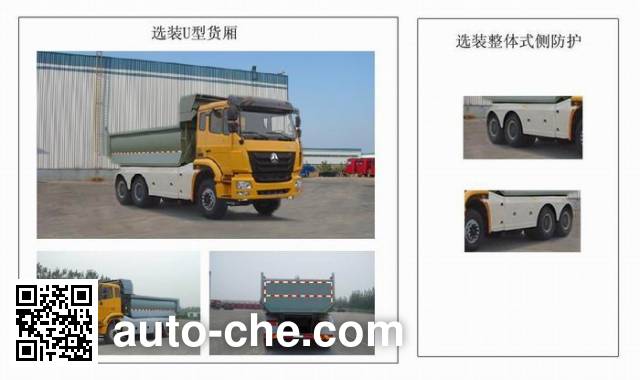

Box car length and long rear overhang parameter correspondence. Cargo box dump mode after unloading. Green car optional cargo box with lid, cover the quality of 210kg (included in the curb weight). Different optional cargo box structure, optional U-type cargo compartment. Optional side guard grille or integral, bolted connections; lattice materials used Material: Q235A, monolithic materials used Material: glass fiber reinforced unsaturated polyester resin (GRP). Rear protective device materials Material: Q235A, bolted connections, cross-sectional dimensions of 100 × 100mm, ground clearance is 530mm. ABS System Model 446004 6300, ABS producers of WABCO Vehicle Control Systems (China) Co., Ltd. It has installed satellite positioning (Note: possible inaccuracies)

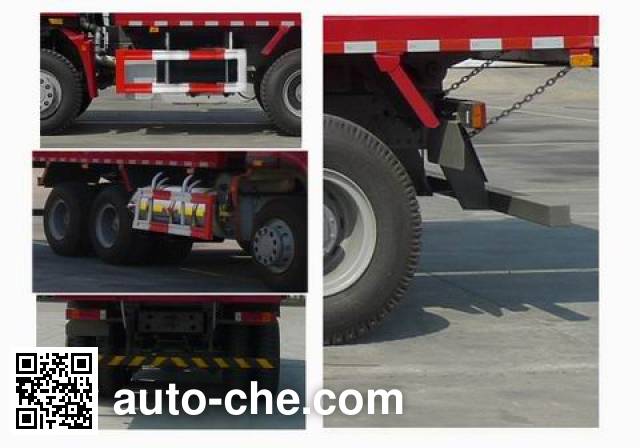

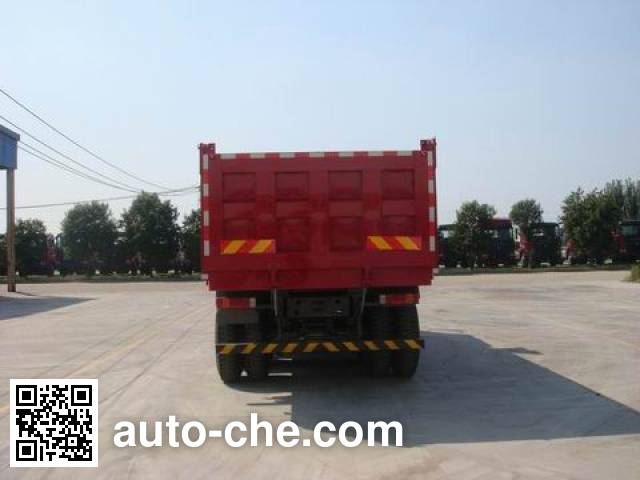

Photo gallery of the China dump truck Sinotruk Hohan ZZ3255M3843E1L
