sinotruk stake body cargo truck

Sinotruk Hania ZZ5255CLXN5245C stake truck manufactured by Sinotruk Jining Commercial Vehicle Co., Ltd.

Sinotruk Hania stake truck ZZ5255CLXN5245C

ZZ5255CLXN5245C

Sinotruk Hania Chinese stake truck ZZ5255CLXN5245C manufactured by Sinotruk Jining Commercial Vehicle Co., Ltd. (a manufacturing enterprise in Jining, Shandong Province, China; manufactures a range of , vehicles, including stake trucks); the stake truck based on ZZ1255N5245C chassis. With ABS, curb weight is of the China truck 12160 kg, tires are 11.00-20, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR, gross vehicle weight is 25000 kg, rated capacity is 12710 kg, cargo body is 8550 × 800 × 2326 mm, max. speed is 90 km/h, engine: WD615.95 / WD615.96 / WD615.95E / WD615.96E / WD615.95C / WD615.96C, wheelbase is 5225+1350 mm.

Technical Specifications of the China truck Sinotruk Hania

Vehicle Overview

MakeSinotruk Hania
Vehicle modelZZ5255CLXN5245C
Vehicle typeStake truck
VIN
  • LZZTBLNH×××××××××
  • LZZTBLSH×××××××××
Manufacturer
A subsidiary of CNHTC - China National Heavy Duty Truck Group Corporation (Sinotruk).
CountryChina
Manufacturer's locationJining, Shandong Province, China.
Vehicle chassisZZ1255N5245C

Engine of the China truck Sinotruk Hania ZZ5255CLXN5245C

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.959726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.969726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.95E9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.96E9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.95C9726 cc249 kW (339 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.96C9726 cc279 kW (380 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)

Dimensions and Weights of the China truck Sinotruk Hania ZZ5255CLXN5245C

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11099
Overall width (mm)2496
Overall height (mm)3980
Cargo Body Dimensions
Cargo body length (mm)8550
Cargo body width (mm)800
Cargo body height (mm)2326
Weights, Ground Pressure and Capacity
Rated capacity (kg)12710
Curb weight of the China truck (kg)12160
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.05
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)5225+1350
Front track (mm)2022, 2041
Rear track (mm)1830/1830
Front and Rear Overhang
Front overhang (mm)1550
Rear overhang (mm)2974
Angle of Approach and Departure
Angle of approach (deg.)19
Angle of departure (deg.)12

Wheels and Tires

Tires and Wheels of the China truck Sinotruk Hania ZZ5255CLXN5245C
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R20 16PR, 12.00-20 16PR, 12.00R20 14PR

Misc. Specifications

Miscellaneous Specifications Sinotruk Hania ZZ5255CLXN5245C (stake truck)
Max. speed90
ABShave
Leaf springs10 / 12, 10 / -

Additional Information

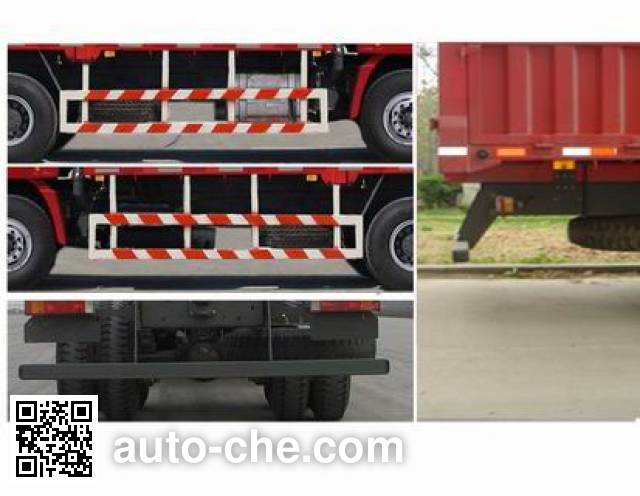

Optional high roof cab car. Cargo floor from the top of the fence to 2270mm. Car optional new mask. Side guards materials used Material: Q235A, bolted connections.The rear guard of the materials Material: Q235A, bolted connections, cross-sectional dimensions of 100 × 100mm, ground clearance 530mm. It should be installed drive recorder. ABS System Model 446 004 ××××, producers of WABCO Vehicle Control Systems (China) Limited.
(Note: possible inaccuracies)

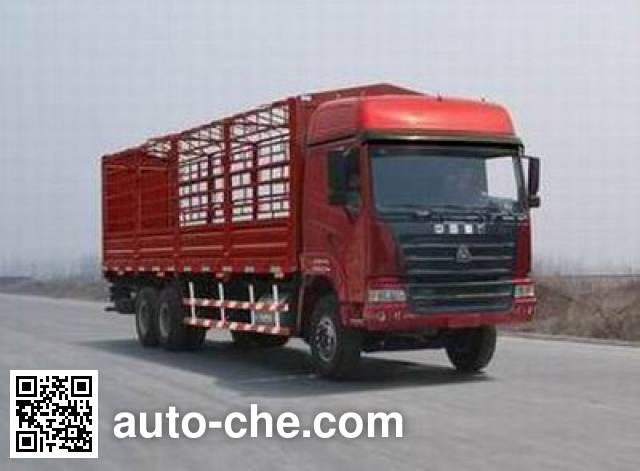

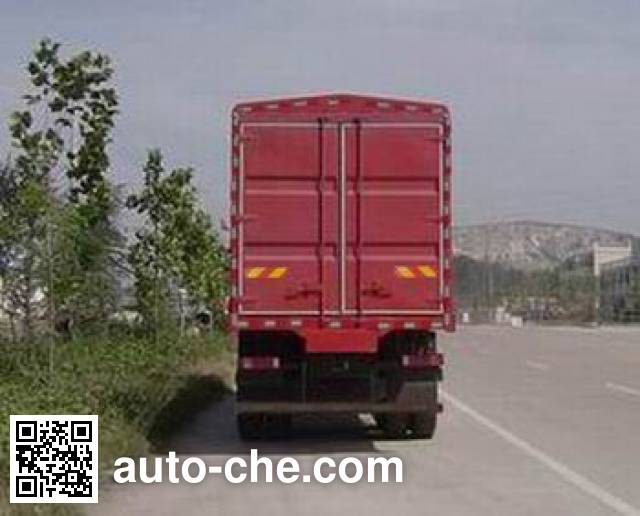

Photo gallery of the China truck Sinotruk Hania ZZ5255CLXN5245C
