Sida Steyr ZZ5386XXYM30B6F box van truck manufactured by Sinotruk Jinan Truck Co., Ltd.
ZZ5386XXYM30B6F

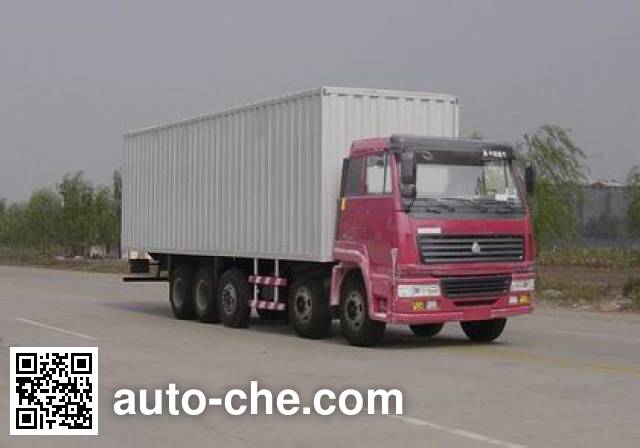

Sida Steyr Chinese box van truck ZZ5386XXYM30B6F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including box van trucks); the box van truck based on ZZ1386M30B6F chassis. Wheelbase is 1800+3000+1600+1350 mm, max. speed is 90 km/h, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.87 / WD615.87, cargo body is 9450 × 2385 × 2435 mm, curb weight is of the China van truck 15020 kg, cab seating capacity is 2, gross vehicle weight is 38000 kg.
Technical Specifications of the China van truck Sida Steyr
Dimensions and Weights of the China van truck Sida Steyr ZZ5386XXYM30B6F
Dimensions and Weight Specifications of the China van truck
Overall Dimensions of the China van truck
Overall length (mm)
11984
Overall width (mm)
2496
Overall height (mm)
3940
Cargo Body Dimensions
Cargo body length (mm)
9450
Cargo body width (mm)
2385
Cargo body height (mm)
2435
Weights, Ground Pressure
Curb weight of the China van truck (kg)
15020
Gross vehicle weight (kg)
38000
Axle load distribution (kg)
6500/6500/7000/18000 (tandem axle)
Wheel Base
Wheelbase (mm)
1800+3000+1600+1350
Front and Rear Overhang
Front overhang (mm)
1560
Rear overhang (mm)
2674
Angle of Approach and Departure
Angle of approach (deg.)
15
Angle of departure (deg.)
15
Wheels and Tires
Tires and Wheels of the China van truck Sida Steyr ZZ5386XXYM30B6F
Number of axles
5
Misc. Specifications
Miscellaneous Specifications Sida Steyr ZZ5386XXYM30B6F (box van truck)
Max. speed
90
Cab seating capacity
2
Steering
steering wheel
Additional Information
The car top compartment closed, not open; envelope volume of 54.9 cubic meters. The car should be installed body reflective logo on the side and rear. (Note: possible inaccuracies)
