sinotruk stake body cargo truck

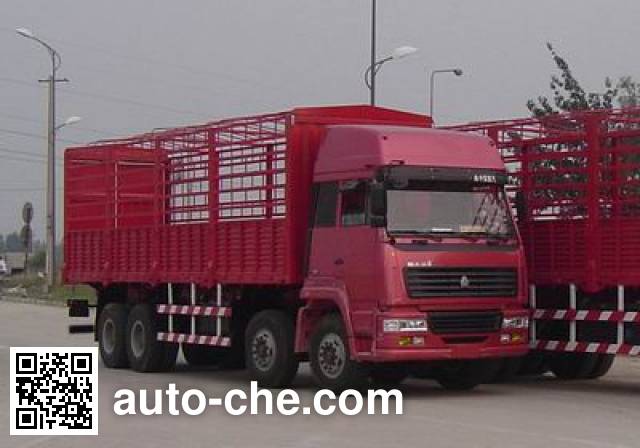

Sida Steyr ZZ5312CLXN3866V stake truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr stake truck ZZ5312CLXN3866V

ZZ5312CLXN3866V

Sida Steyr Chinese stake truck ZZ5312CLXN3866V manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including stake trucks); the stake truck based on ZZ1312N3866V chassis. Gross vehicle weight is 31000 kg, max. speed is 90 km/h, engine: WD615.68A / WD615.68A / WD615.69 / WD615.69, curb weight is of the China truck 13630 kg, cab seating capacity is  2, wheelbase is 1800+3800+1350 mm, cargo body is 8600 × 2300 × 800 mm.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ5312CLXN3866V
Vehicle typeStake truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1312N3866V

Engine of the China truck Sida Steyr ZZ5312CLXN3866V

Engine Specifications of the China truck
Engine ModelWD615.68A / WD615.68A / WD615.69 / WD615.69
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)225 / 225 / 247 / 247

Dimensions and Weights of the China truck Sida Steyr ZZ5312CLXN3866V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11137
Overall width (mm)2496
Overall height (mm)3980
Cargo Body Dimensions
Cargo body length (mm)8600
Cargo body width (mm)2300
Cargo body height (mm)800
Weights, Ground Pressure
Curb weight of the China truck (kg)13630
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.27
Axle load distribution (kg)6500/7000/17500 (tandem axle)
Wheel Base
Wheelbase (mm)1800+3800+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2627
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)17

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ5312CLXN3866V
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ5312CLXN3866V (stake truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car floor from the top of the fence to 2270mm. The car should be installed body reflective logo on the side and rear.
(Note: possible inaccuracies)
