ZZ5312CLXN3866F

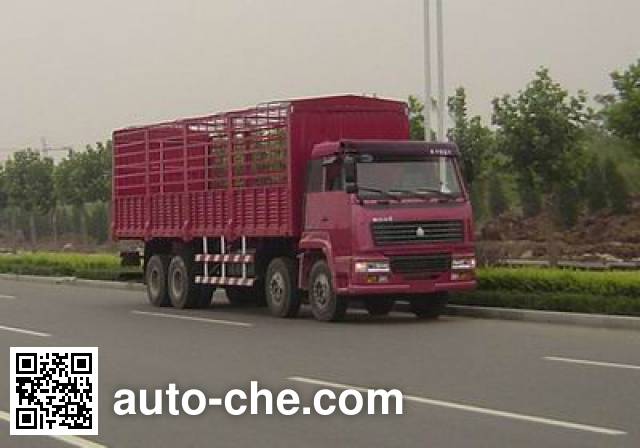

Sida Steyr Chinese stake truck ZZ5312CLXN3866F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak
Technical Specifications of the China truck Sida Steyr Vehicle Overview Engine of the China truck Sida Steyr ZZ5312CLXN3866F Engine Specifications of the China truck Engine Model WD615.68A / WD615.68A / WD615.69 / WD615.69 Engine displacement (cc) 9726 / 9726 / 9726 / 9726 Engine power (kW) 225 / 225 / 247 / 247
Dimensions and Weights of the China truck Sida Steyr ZZ5312CLXN3866F Dimensions and Weight Specifications of the China truck Overall Dimensions of the China truck Overall length (mm) 11137 Overall width (mm) 2496 Overall height (mm) 3980 Cargo Body Dimensions Cargo body length (mm) 8600 Cargo body width (mm) 2300 Cargo body height (mm) 800 Weights, Ground Pressure Curb weight of the China truck (kg) 13600 Gross vehicle weight (kg) 31000 Load factor (payload to weight ratio) 1.27 Axle load distribution (kg) 6500/7000/17500 (tandem axle) Wheel Base Wheelbase (mm) 1800+3800+1350 Front and Rear Overhang Front overhang (mm) 1560 Rear overhang (mm) 2627 Angle of Approach and Departure Angle of approach (deg.) 15 Angle of departure (deg.) 17
Wheels and Tires Tires and Wheels of the China truck Sida Steyr ZZ5312CLXN3866F Number of axles 4
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ5312CLXN3866F (stake truck) Max. speed 90 Cab seating capacity 2 Steering steering wheel
Additional Information The car floor from the top of the fence to 2270mm. The car should be installed body reflective logo on the side and rear.(Note: possible inaccuracies)
