Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

sinotruk stake body cargo truck

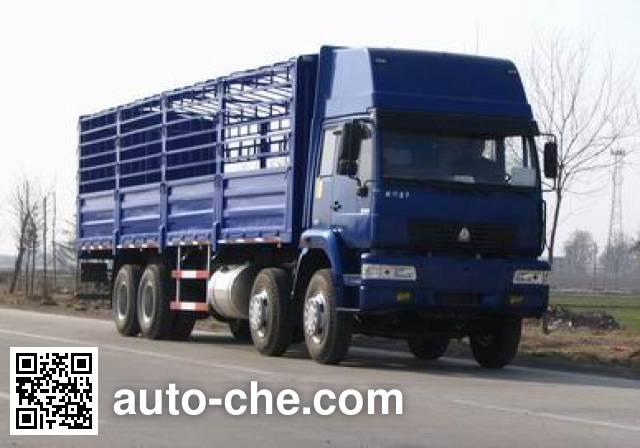

Sida Steyr ZZ5311CLXK4661V stake truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr stake truck ZZ5311CLXK4661V

ZZ5311CLXK4661V

Sida Steyr Chinese stake truck ZZ5311CLXK4661V manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including stake trucks); the stake truck based on ZZ1311K4661V chassis. Cab seating capacity is  2, cargo body is 9600 × 2300 × 600/800 mm, max. speed is 82 km/h, curb weight is of the China truck 12150, 12450 kg, gross vehicle weight is 31000 kg, wheelbase is 1800+4600+1300 mm, engine: WD615.62 / WD615.62 / 6C250-2.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ5311CLXK4661V
Vehicle typeStake truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1311K4661V

Engine of the China truck Sida Steyr ZZ5311CLXK4661V

Engine Specifications of the China truck
Engine ModelWD615.62 / WD615.62 / 6C250-2
Engine displacement (cc)9726 / 9726 / 8268
Engine power (kW)196 / 196 / 184

Dimensions and Weights of the China truck Sida Steyr ZZ5311CLXK4661V

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11970
Overall width (mm)2490
Overall height (mm)3950
Cargo Body Dimensions
Cargo body length (mm)9600
Cargo body width (mm)2300
Cargo body height (mm)600/800
Weights, Ground Pressure
Curb weight of the China truck (kg)12150, 12450
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.49
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4600+1300
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)2950
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)16

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ5311CLXK4661V
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ5311CLXK4661V (stake truck)
Max. speed82
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional for the two types of chassis and engine WD615.62 11.00-20 tires. Cargo floor from the top of the fence to 2270mm.Extended cab car in front of a radiator mask.
(Note: possible inaccuracies)
