sinotruk stake body cargo truck

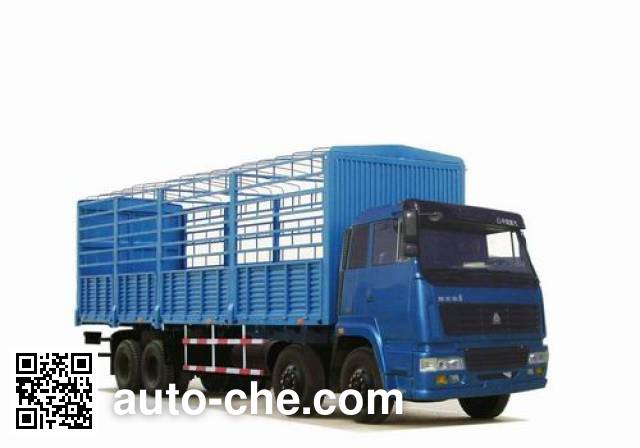

Sida Steyr ZZ5292CLXM4666F stake truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr stake truck ZZ5292CLXM4666F

ZZ5292CLXM4666F

Sida Steyr Chinese stake truck ZZ5292CLXM4666F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including stake trucks); the stake truck based on ZZ1292M4666F chassis. Max. speed is 91 km/h, wheelbase is 1800+4600+1350 mm, engine: WD615.62 / WD615.62 / WD615.87 / WD615.87, cab seating capacity is  3, cargo body is 9400 × 2300 × 800 mm, gross vehicle weight is 29000 kg, curb weight is of the China truck 12585 kg.

Technical Specifications of the China truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ5292CLXM4666F
Vehicle typeStake truck
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1292M4666F

Engine of the China truck Sida Steyr ZZ5292CLXM4666F

Engine Specifications of the China truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China truck Sida Steyr ZZ5292CLXM4666F

Dimensions and Weight Specifications of the China truck
Overall Dimensions of the China truck
Overall length (mm)11984
Overall width (mm)2496
Overall height (mm)3970
Cargo Body Dimensions
Cargo body length (mm)9400
Cargo body width (mm)2300
Cargo body height (mm)800
Weights
Curb weight of the China truck (kg)12585
Gross vehicle weight (kg)29000
Load factor (payload to weight ratio)1.30
Wheel Base and Track
Wheelbase (mm)1800+4600+1350
Front track (mm)1939
Rear track (mm)1800
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2674
Angle of Approach and Departure
Angle of approach (deg.)15
Angle of departure (deg.)17

Wheels and Tires

Tires and Wheels of the China truck Sida Steyr ZZ5292CLXM4666F
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ5292CLXM4666F (stake truck)
Max. speed91
Cab seating capacity3
Steeringsteering wheel

Additional Information

The car cargo compartment floor from the top of the fence to 2270mm. The car should be installed body reflective logo on the side and rear.
(Note: possible inaccuracies)
