steyr tractor unit

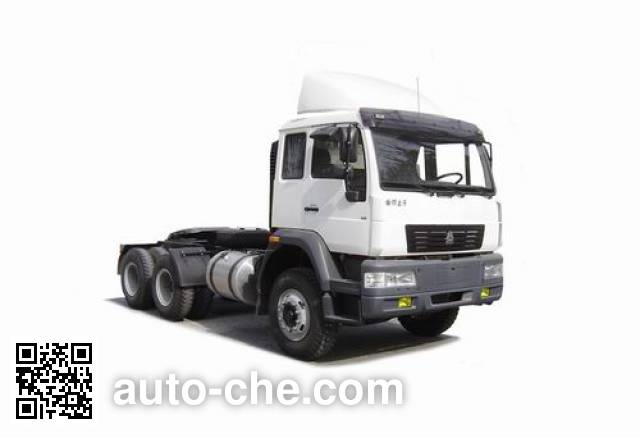

Sida Steyr ZZ4231M3241W tractor unit manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr tractor unit ZZ4231M3241W

ZZ4231M3241W

Sida Steyr Chinese tractor unit ZZ4231M3241W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including tractor units); the tractor unit based on ZZ4231M3241W chassis. Wheelbase is 3150+1350 mm, total mass of trailer is 30500, 33900 kg, curb weight is of the China tractor unit 7740 kg, tires are 11.00-20, cab seating capacity is  2, engine: WD615.62 / WD615.87, gross vehicle weight is 23490 kg, diesel fuel, max. speed is 98 km/h, environmental standard is National II / Euro 2, fifth wheel capacity is 15620 kg.

Technical Specifications of the China tractor unit Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ4231M3241W
Vehicle typeTractor unit
VIN
  • LZZACLMB
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ4231M3241W

Engine of the China tractor unit Sida Steyr ZZ4231M3241W

Engine Specifications of the China tractor unit
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213
Fueldiesel fuel
Environmental standards complianceNational II / Euro 2

Dimensions and Weights of the China tractor unit Sida Steyr ZZ4231M3241W

Dimensions and Weight Specifications of the China tractor unit
Overall Dimensions of the China tractor unit
Overall length (mm)6520
Overall width (mm)2490
Overall height (mm)2808/3458
Weights, Ground Pressure and Capacity
Curb weight of the China tractor unit (kg)7740
Fifth wheel load capacity (kg)15620
Gross vehicle weight (kg)23490
Total mass of trailer (kg)30500, 33900
Wheel Base and Track
Wheelbase (mm)3150+1350
Front track (mm)2047, 1995
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)700
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)45

Wheels and Tires

Tires and Wheels of the China tractor unit Sida Steyr ZZ4231M3241W
Number of axles3
Number of tires10
Tires dimension11.00-20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ4231M3241W (tractor unit)
Max. speed98
Cab seating capacity2
Steeringsteering wheel
Leaf springs12 / 12

Additional Information

Optional cover. Extended cab car in front of a radiator mask.Quasi-total mass of trailer and engine parameters correspond to the parameters. Net power car engines WD615.62 selected as 192kw, WD615.87 to 209kw.
(Note: possible inaccuracies)
