Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

steyr tractor unit

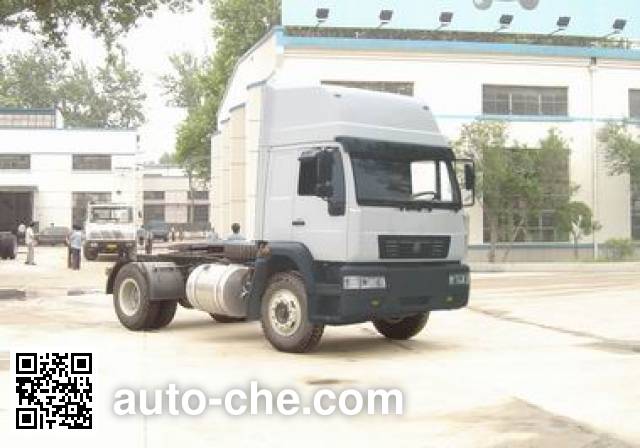

Sida Steyr ZZ4181M3611V tractor unit manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr tractor unit ZZ4181M3611V

ZZ4181M3611V

Sida Steyr Chinese tractor unit ZZ4181M3611V manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including tractor units); the tractor unit based on ZZ4181M3611V chassis. Environmental standard is National II / Euro 2, curb weight is of the China tractor unit 6620 kg, total mass of trailer is 31600, 35000 kg, wheelbase is 3600 mm, fifth wheel capacity is 11250 kg, diesel fuel, max. speed is 85, 90 km/h, cab seating capacity is  2, tires are 11.00-20, 11.00R20, 12.00-20, engine: WD615.62 / WD615.87, gross vehicle weight is 18000 kg.

Technical Specifications of the China tractor unit Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ4181M3611V
Vehicle typeTractor unit
VIN
  • LZZACCMD
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ4181M3611V

Engine of the China tractor unit Sida Steyr ZZ4181M3611V

Engine Specifications of the China tractor unit
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213
Fueldiesel fuel
Environmental standards complianceNational II / Euro 2

Dimensions and Weights of the China tractor unit Sida Steyr ZZ4181M3611V

Dimensions and Weight Specifications of the China tractor unit
Overall Dimensions of the China tractor unit
Overall length (mm)5950
Overall width (mm)2490
Overall height (mm)3870
Weights, Ground Pressure and Capacity
Curb weight of the China tractor unit (kg)6620
Fifth wheel load capacity (kg)11250
Gross vehicle weight (kg)18000
Axle load distribution (kg)6500/11500
Total mass of trailer (kg)31600, 35000
Wheel Base and Track
Wheelbase (mm)3600
Front track (mm)2047, 1995
Rear track (mm)1820, 1850
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1030
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)45

Wheels and Tires

Tires and Wheels of the China tractor unit Sida Steyr ZZ4181M3611V
Number of axles2
Number of tires6
Tires dimension11.00-20, 11.00R20, 12.00-20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ4181M3611V (tractor unit)
Max. speed85, 90
Cab seating capacity2
Steeringsteering wheel
Leaf springs12 / 13+7, 12 / 9+6

Additional Information

Extended cab car in front of a radiator mask.Quasi-total mass of trailer and engine parameters correspond to the parameters. Net power car engines WD615.62 selected as 192kw, WD615.87 to 209kw.
(Note: possible inaccuracies)
