Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

steyr tractor unit

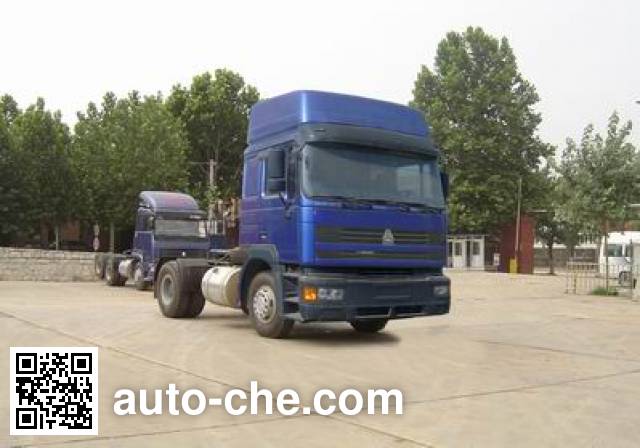

Sida Steyr ZZ4153M3611V tractor unit manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr tractor unit ZZ4153M3611V

ZZ4153M3611V

Sida Steyr Chinese tractor unit ZZ4153M3611V manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including tractor units); the tractor unit based on ZZ4153M3611V chassis. Wheelbase is 3600 mm, engine: WD615.62 / WD615.87, fifth wheel capacity is 7920 kg, tires are 11.00-20, 11.00R20, 12.00-20, 12.00R20, gross vehicle weight is 15000 kg, max. speed is 88 km/h, diesel fuel, environmental standard is National II / Euro 2, curb weight is of the China tractor unit 6950 kg, total mass of trailer is 31300, 31900 kg, cab seating capacity is  2.

Technical Specifications of the China tractor unit Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ4153M3611V
Vehicle typeTractor unit
VIN
  • LZZACCMD
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ4153M3611V

Engine of the China tractor unit Sida Steyr ZZ4153M3611V

Engine Specifications of the China tractor unit
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213
Fueldiesel fuel
Environmental standards complianceNational II / Euro 2

Dimensions and Weights of the China tractor unit Sida Steyr ZZ4153M3611V

Dimensions and Weight Specifications of the China tractor unit
Overall Dimensions of the China tractor unit
Overall length (mm)6155
Overall width (mm)2490
Overall height (mm)3760
Weights, Ground Pressure and Capacity
Curb weight of the China tractor unit (kg)6950
Fifth wheel load capacity (kg)7920
Gross vehicle weight (kg)15000
Axle load distribution (kg)5000/10000
Total mass of trailer (kg)31300, 31900
Wheel Base and Track
Wheelbase (mm)3600
Front track (mm)1958
Rear track (mm)1850
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)1030
Angle of Approach and Departure
Angle of approach (deg.)16
Angle of departure (deg.)42

Wheels and Tires

Tires and Wheels of the China tractor unit Sida Steyr ZZ4153M3611V
Number of axles2
Number of tires6
Tires dimension11.00-20, 11.00R20, 12.00-20, 12.00R20

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ4153M3611V (tractor unit)
Max. speed88
Cab seating capacity2
Steeringsteering wheel
Leaf springs9 / 9+6

Additional Information

Quasi-total mass of trailer and engine parameters correspond to the parameters. Net power car engines WD615.62 selected as 192kw, WD615.87 to 209kw.
(Note: possible inaccuracies)
