steyr tipper / dump truck

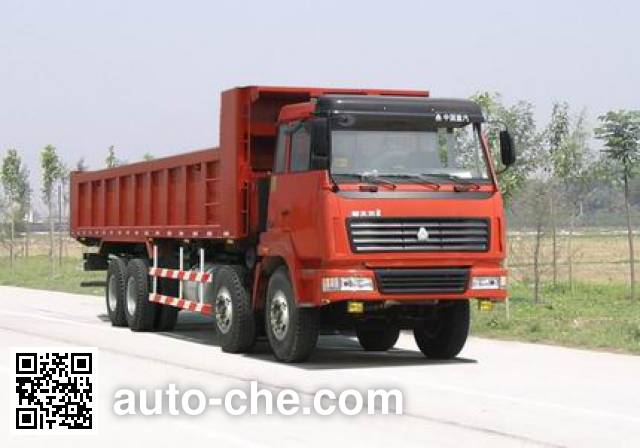

Sida Steyr ZZ3316N3866A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3316N3866A

ZZ3316N3866A

Sida Steyr Chinese dump truck (tipper truck) ZZ3316N3866A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3316N3866F chassis. Gross vehicle weight is 31000 kg, curb weight is of the China dump truck 15070, 15330 kg, cargo body is 7800/7500 × 2300 × 1000/1100 mm, max. speed is 75 km/h, engine: WD615.69 / WD615.69 / WD615.47, wheelbase is 1800+3800+1350 mm, cab seating capacity is  2.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3316N3866A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3316N3866F

Engine of the China dump truck Sida Steyr ZZ3316N3866A

Engine Specifications of the China dump truck
Engine ModelWD615.69 / WD615.69 / WD615.47
Engine displacement (cc)9726 / 9726 / 9726
Engine power (kW)247 / 247 / 273

Dimensions and Weights of the China dump truck Sida Steyr ZZ3316N3866A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10755/10455
Overall width (mm)2496
Overall height (mm)3320
Cargo Body Dimensions
Cargo body length (mm)7800/7500
Cargo body width (mm)2300
Cargo body height (mm)1000/1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15070, 15330
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.05, 1.02
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3800+1350
Front/rear overhang (mm)1560/2245, 1560/1945
Angle of approach/departure (deg.)20/22, 20/24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3316N3866A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3316N3866A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Overall length and container length, height, rear suspension and departure angle parameter correspondence. Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 260kg.The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
