steyr tipper / dump truck

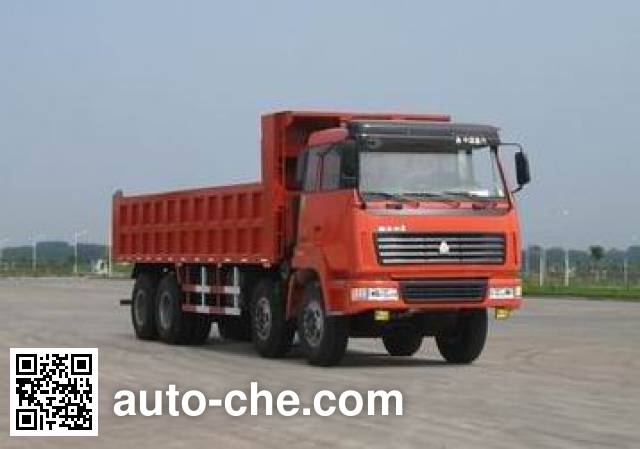

Sida Steyr ZZ3316M4666A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3316M4666A

ZZ3316M4666A

Sida Steyr Chinese dump truck (tipper truck) ZZ3316M4666A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3316M4666F chassis. Max. speed is 90 km/h, cab seating capacity is  2, curb weight is of the China dump truck 15200, 15490 kg, wheelbase is 1800+4600+1350 mm, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, gross vehicle weight is 31000 kg, cargo body is 8200 × 2300 × 1000 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3316M4666A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3316M4666F

Engine of the China dump truck Sida Steyr ZZ3316M4666A

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sida Steyr ZZ3316M4666A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)11155
Overall width (mm)2496
Overall height (mm)3320
Cargo Body Dimensions
Cargo body length (mm)8200
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15200, 15490
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.03, 1.00
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4600+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1845
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3316M4666A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3316M4666A (dump truck)
Max. speed90
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car needs a truncated rear overhang selected chassis to 920mm, only optional Steyr semi-high roof cab, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 290kg.The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
