steyr tipper / dump truck

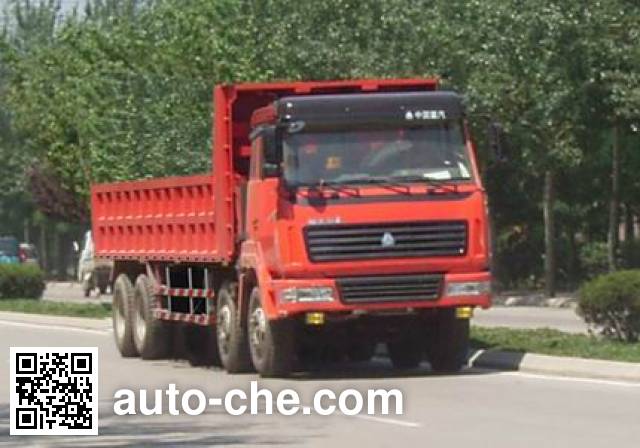

Sida Steyr ZZ3316M4266A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3316M4266A

ZZ3316M4266A

Sida Steyr Chinese dump truck (tipper truck) ZZ3316M4266A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3316M4266F chassis. Engine: WD615.62 / WD615.87, cab seating capacity is  2, cargo body is 7800 × 2300 × 1000 mm, wheelbase is 1800+4200+1350 mm, gross vehicle weight is 31000 kg, curb weight is of the China dump truck 15110, 15380 kg, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3316M4266A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3316M4266F

Engine of the China dump truck Sida Steyr ZZ3316M4266A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3316M4266A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10885
Overall width (mm)2496
Overall height (mm)3320
Cargo Body Dimensions
Cargo body length (mm)7800
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15110, 15380
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.05, 1.01
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4200+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1975
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3316M4266A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3316M4266A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 270kg.
(Note: possible inaccuracies)
