Sida Steyr ZZ3313M4461C1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3313M4461C1

ZZ3313M4461C1

Sida Steyr Chinese dump truck (tipper truck) ZZ3313M4461C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3313M4461C1 chassis. Cab seating capacity is  2, max. speed is 75 km/h, gross vehicle weight is 31000 kg, rated capacity is 15450 kg, environmental standard is National III / Euro 3, curb weight is of the China dump truck 15420 kg, without ABS, cargo body is 8000 × 1000 × 2300 mm, wheelbase is 1800+4400+1350 mm, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 18PR, engine: WD615.92C / WD615.93C / WD615.92E / WD615.93E / WD615.97E / WD615.97C, diesel fuel.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3313M4461C1
Vehicle typeDump truck (tipper truck)
VIN
  • LZZAEXMF×××××××××
  • LZZAEXNF×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3313M4461C1

Engine of the China dump truck Sida Steyr ZZ3313M4461C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.92C9726 cc198 kW (270 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.93C9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.92E9726 cc196 kW (267 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.93E9726 cc213 kW (290 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.97E9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.97C9726 cc221 kW (301 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sida Steyr ZZ3313M4461C1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)11075
Overall width (mm)2496
Overall height (mm)3500
Cargo Body Dimensions
Cargo body length (mm)8000
Cargo body width (mm)1000
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)15450
Curb weight of the China dump truck (kg)15420
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base and Track
Wheelbase (mm)1800+4400+1350
Front track (mm)2020/2020, 1939/1939
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)2000
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3313M4461C1
Number of axles4
Number of tires12
Tires dimension11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 18PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3313M4461C1 (dump truck)
Max. speed75
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs left 14 right 13 / left 14 right 13 / 12, 11 / 11 / 12

Additional Information

After unloading the car dump way. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

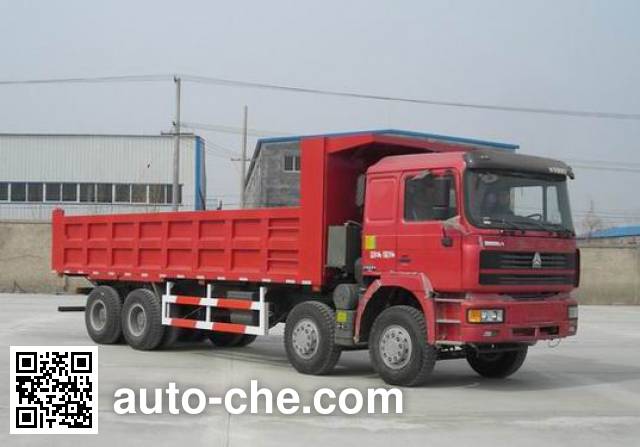

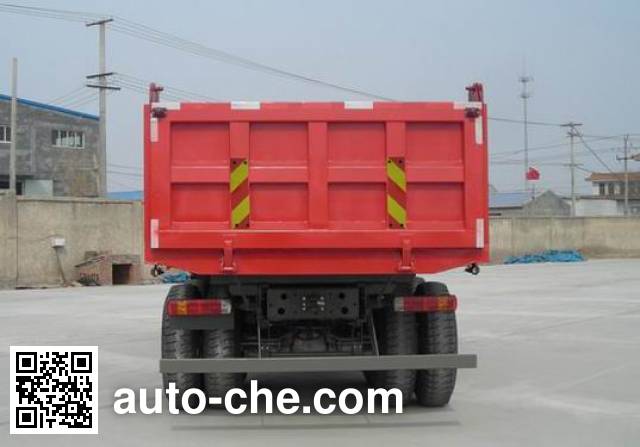

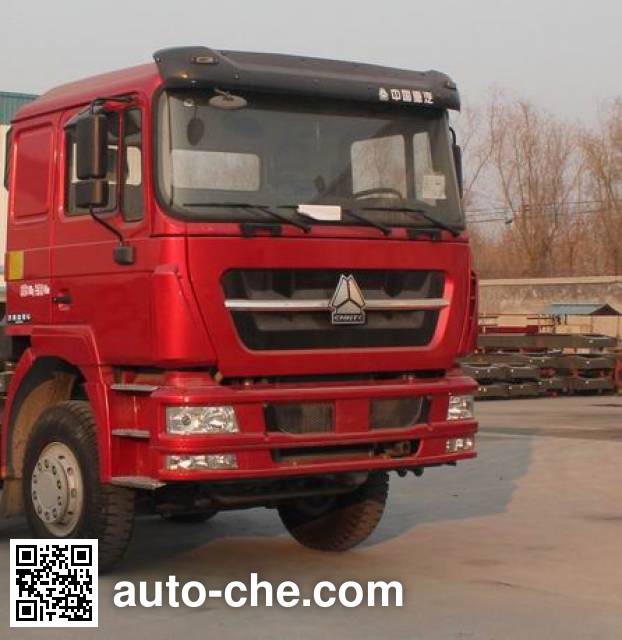

Photo gallery of the China dump truck Sida Steyr ZZ3313M4461C1
