steyr tipper / dump truck

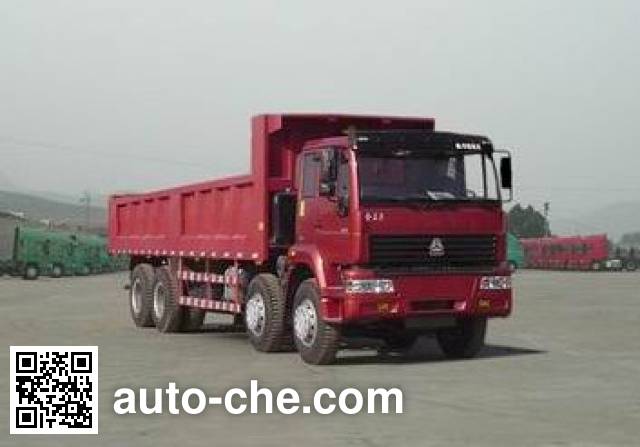

Sida Steyr ZZ3311N4461A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3311N4461A

ZZ3311N4461A

Sida Steyr Chinese dump truck (tipper truck) ZZ3311N4461A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3311N4461A chassis. Cargo body is 8200 × 2300 × 1000 mm, engine: WD615.69, wheelbase is 1800+4400+1350 mm, cab seating capacity is  2, curb weight is of the China dump truck 15200 kg, gross vehicle weight is 31000 kg, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3311N4461A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3311N4461A

Engine of the China dump truck Sida Steyr ZZ3311N4461A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3311N4461A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10905
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)8200
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15200
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.03
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4400+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)2035
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3311N4461A
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3311N4461A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 400kg.
(Note: possible inaccuracies)
