Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

steyr tipper / dump truck

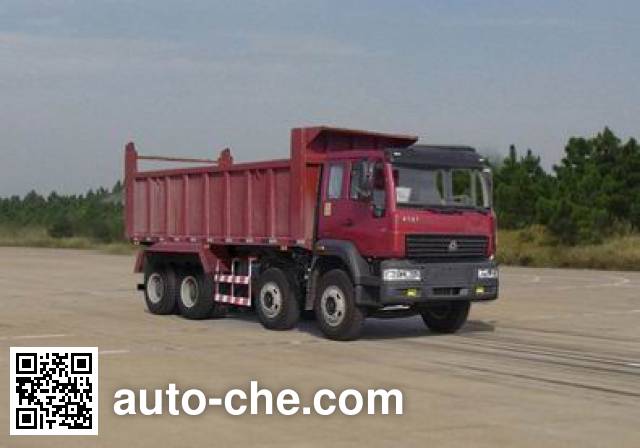

Sida Steyr ZZ3311M4061W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3311M4061W

ZZ3311M4061W

Sida Steyr Chinese dump truck (tipper truck) ZZ3311M4061W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3311M4061W chassis. Cargo body is 7700 × 2300 × 1200/1500 mm, gross vehicle weight is 31000 kg, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, max. speed is 67, 75 km/h, cab seating capacity is  2, wheelbase is 1800+4000+1350 mm, curb weight is of the China dump truck 15020, 15300 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3311M4061W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3311M4061W

Engine of the China dump truck Sida Steyr ZZ3311M4061W

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sida Steyr ZZ3311M4061W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10405
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)7700
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)15020, 15300
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)6500/7000/17500  (tandem axle)
Wheel Base
Wheelbase (mm)1800+4000+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1935
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)38

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3311M4061W
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3311M4061W (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 390kg.
(Note: possible inaccuracies)
