steyr tipper / dump truck

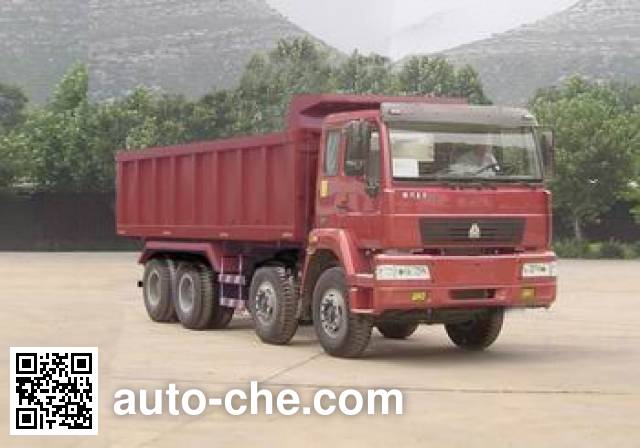

Sida Steyr ZZ3311M3061W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3311M3061W

ZZ3311M3061W

Sida Steyr Chinese dump truck (tipper truck) ZZ3311M3061W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3311M3061W chassis. Cab seating capacity is  2, max. speed is 67, 75 km/h, curb weight is of the China dump truck 14060, 14320, 14460, 14590 kg, wheelbase is 1800+3000+1300, 1800+3000+1350 mm, cargo body is 7000 × 2300 × 1000/1200/1300/1400/1500 mm, gross vehicle weight is 31000 kg, engine: WD615.62 / WD615.62 / WD615.87 / WD615.87.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3311M3061W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3311M3061W

Engine of the China dump truck Sida Steyr ZZ3311M3061W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3311M3061W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9500
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)7000
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300/1400/1500
Weights
Curb weight of the China dump truck (kg)14060, 14320, 14460, 14590
Gross vehicle weight (kg)31000
Load factor (payload to weight ratio)1.11
Wheel Base
Wheelbase (mm)1800+3000+1300, 1800+3000+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)2080, 2030
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3311M3061W
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3311M3061W (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

Rated weight (kg) also for: 16280,16150; Curb weight (kg) also is: 14720 car optional environmental lidded containers, cargo box cover quality 380kg.. The car should be installed in the rear of the body reflective logo.Extended cab car in front of a radiator mask.
(Note: possible inaccuracies)
