steyr tipper / dump truck

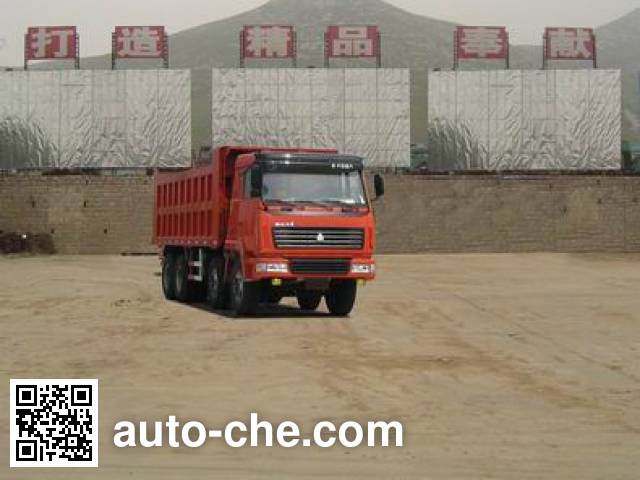

Sida Steyr ZZ3266M3866F dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3266M3866F

ZZ3266M3866F

Sida Steyr Chinese dump truck (tipper truck) ZZ3266M3866F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3266M3866F chassis. Gross vehicle weight is 26000 kg, wheelbase is 1800+3800+1350 mm, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, cab seating capacity is  2, curb weight is of the China dump truck 12760, 12960 kg, max. speed is 75 km/h, cargo body is 7800 × 2300 × 1200/1500 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3266M3866F
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3266M3866F

Engine of the China dump truck Sida Steyr ZZ3266M3866F

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sida Steyr ZZ3266M3866F

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)10755
Overall width (mm)2496
Overall height (mm)3320/3536
Cargo Body Dimensions
Cargo body length (mm)7800
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12760, 12960
Gross vehicle weight (kg)26000
Load factor (payload to weight ratio)1.04, 1.01
Axle load distribution (kg)5300/6000/14700  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3800+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2245
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)22

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3266M3866F
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3266M3866F (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 390kg.
(Note: possible inaccuracies)
