Howo, Sitrak, CNHTC, Hania, Homan dump trucks, tractors and cargo trucks (China). Unofficial reference guide

steyr tipper / dump truck

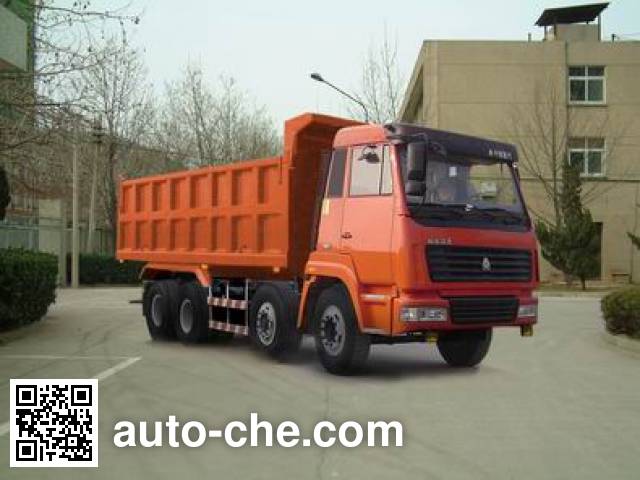

Sida Steyr ZZ3266M3266F dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3266M3266F

ZZ3266M3266F

Sida Steyr Chinese dump truck (tipper truck) ZZ3266M3266F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3266M3266F chassis. Wheelbase is 1800+3200+1350 mm, gross vehicle weight is 26000 kg, cargo body is 6800 × 2300 × 1200/1500 mm, engine: WD615.87 / WD615.87 / WD615.62 / WD615.62, cab seating capacity is  2, max. speed is 75 km/h, curb weight is of the China dump truck 12660, 12830 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3266M3266F
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3266M3266F

Engine of the China dump truck Sida Steyr ZZ3266M3266F

Engine Specifications of the China dump truck
Engine ModelWD615.87 / WD615.87 / WD615.62 / WD615.62
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)213 / 213 / 196 / 196

Dimensions and Weights of the China dump truck Sida Steyr ZZ3266M3266F

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9755
Overall width (mm)2496
Overall height (mm)3320/3536
Cargo Body Dimensions
Cargo body length (mm)6800
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12660, 12830
Gross vehicle weight (kg)26000
Load factor (payload to weight ratio)1.05, 1.03
Axle load distribution (kg)5300/6000/14700  (tandem axle)
Wheel Base
Wheelbase (mm)1800+3200+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1845
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3266M3266F
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3266M3266F (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 360kg.
(Note: possible inaccuracies)
