steyr tipper / dump truck

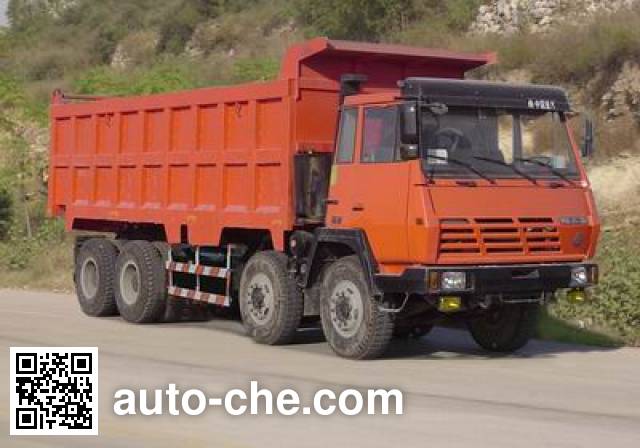

Sida Steyr ZZ3262M3060 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3262M3060

ZZ3262M3060

Sida Steyr Chinese dump truck (tipper truck) ZZ3262M3060 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3262M3060 chassis. Engine: WD615.62 / WD615.62 / WD615.87 / WD615.87, cargo body is 7000 × 2300 × 1000 mm, max. speed is 75 km/h, wheelbase is 1800+3000+1350 mm, curb weight is of the China dump truck 12980 kg, cab seating capacity is  2, gross vehicle weight is 26000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3262M3060
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3262M3060

Engine of the China dump truck Sida Steyr ZZ3262M3060

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3262M3060

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9806
Overall width (mm)2496
Overall height (mm)3364
Cargo Body Dimensions
Cargo body length (mm)7000
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12980
Gross vehicle weight (kg)26000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)5500/6000/14500 (tandem axle)
Wheel Base
Wheelbase (mm)1800+3000+1350
Front and Rear Overhang
Front overhang (mm)1576
Rear overhang (mm)2080
Angle of Approach and Departure
Angle of approach (deg.)22
Angle of departure (deg.)23

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3262M3060
Number of axles4

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3262M3060 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional environmental lidded containers, cargo box cover quality 380kg. The car should be installed in the rear of the body reflective logo.
(Note: possible inaccuracies)
