steyr tipper / dump truck

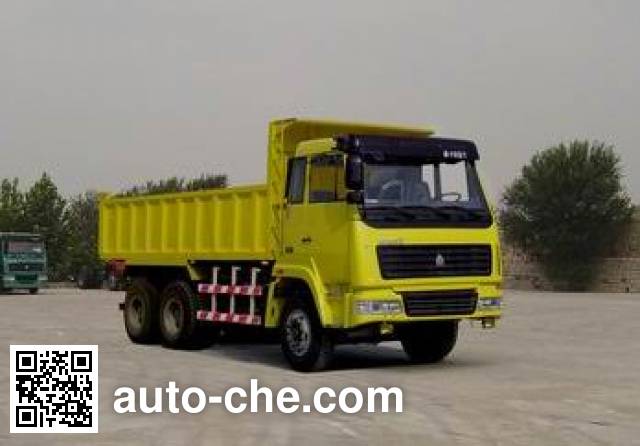

Sida Steyr ZZ3256N4346A dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256N4346A

ZZ3256N4346A

Sida Steyr Chinese dump truck (tipper truck) ZZ3256N4346A manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256N4646A chassis. Max. speed is 75 km/h, wheelbase is 4325+1350, 4600+1350 mm, curb weight is of the China dump truck 12210, 12420 kg, engine: WD615.69, gross vehicle weight is 25000 kg, cab seating capacity is  2, cargo body is 6300 × 2300 × 1000 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256N4346A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256N4646A

Engine of the China dump truck Sida Steyr ZZ3256N4346A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256N4346A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9255
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)6300
Cargo body width (mm)2300
Cargo body height (mm)1000
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12210, 12420
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04, 1.01
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4325+1350, 4600+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)2020
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)22

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256N4346A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256N4346A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional chassis wheelbase 4325 +1350, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 210kg.
(Note: possible inaccuracies)
