steyr tipper / dump truck

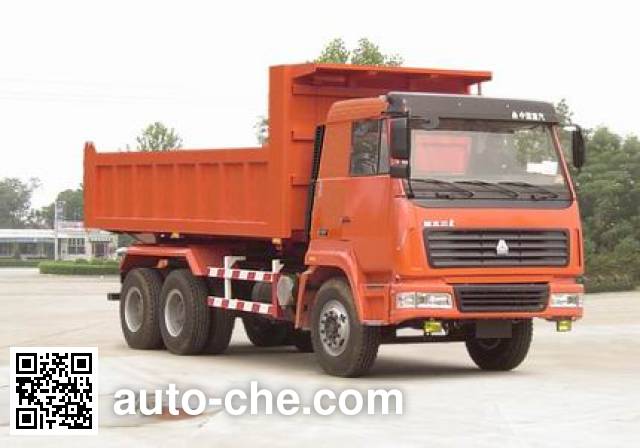

Sida Steyr ZZ3256N3846A1 dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256N3846A1

ZZ3256N3846A1

Sida Steyr Chinese dump truck (tipper truck) ZZ3256N3846A1 manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ1252N3846F chassis. Engine: WD615.68A / WD615.68A / WD615.69 / WD615.69, curb weight is of the China dump truck 12120, 12300 kg, gross vehicle weight is 25000 kg, wheelbase is 3800+1350 mm, cargo body is 5600/5800 × 2300 × 1100 mm, cab seating capacity is  2, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256N3846A1
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1252N3846F

Engine of the China dump truck Sida Steyr ZZ3256N3846A1

Engine Specifications of the China dump truck
Engine ModelWD615.68A / WD615.68A / WD615.69 / WD615.69
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)225 / 225 / 247 / 247

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256N3846A1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8555
Overall width (mm)2496
Overall height (mm)3270
Cargo Body Dimensions
Cargo body length (mm)5600/5800
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12120, 12300
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3800+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1845
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256N3846A1
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256N3846A1 (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car chassis selected truncated rear overhang needs to 900mm. Curb weight were without cover and quality time with the cap. The car optional green container with lid, cover the quality of 180kg. The car is only optional China National Heavy Duty Truck WD615.69 engines.
(Note: possible inaccuracies)
