Sida Steyr Chinese dump truck (tipper truck) ZZ3256N3646C manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256N3646C chassis. Environmental standard is National III / Euro 3, without ABS, max. speed is 75 km/h, wheelbase is 3600+1350 mm, diesel fuel, engine: WD615.95 / WD615.96 / WD615.95E / WD615.96E / WD615.95C / WD615.96C, rated capacity is 12610 kg, cargo body is 5600/5400 × 1180 × 2300 mm, curb weight is of the China dump truck 12260 kg, gross vehicle weight is 25000 kg, tires are 11.00-20, 12.00-20, cab seating capacity is 2.
Technical Specifications of the China dump truck Sida Steyr

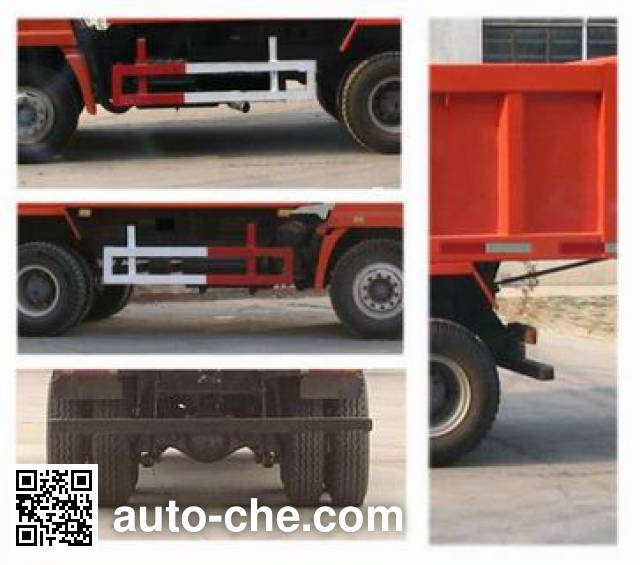

Container after unloading dump mode, the car optional Steyr semi-high roof cab, corresponding car length 8155mm, cargo box length 5400mm, rear overhang is 1645mm. The car optional green container with lid, cover the quality of 300kg (including the curb weight). Vehicle length and box long rear overhang parameter correspondence. When cartons before the move, the vehicle height 3500mm. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph. (Note: possible inaccuracies)

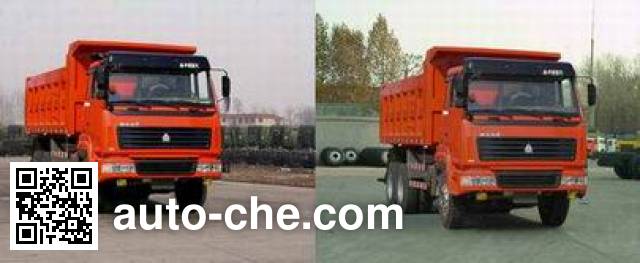

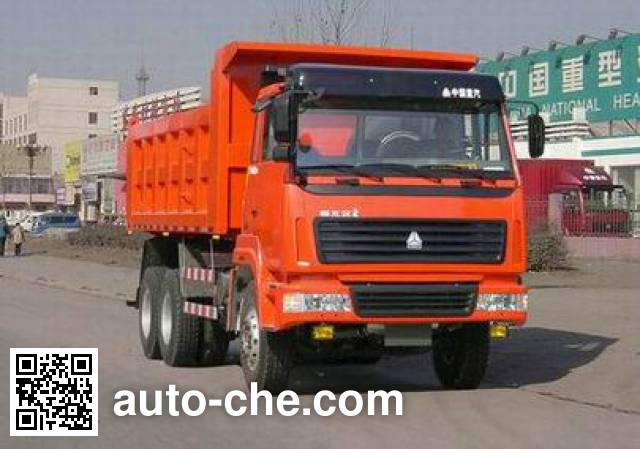

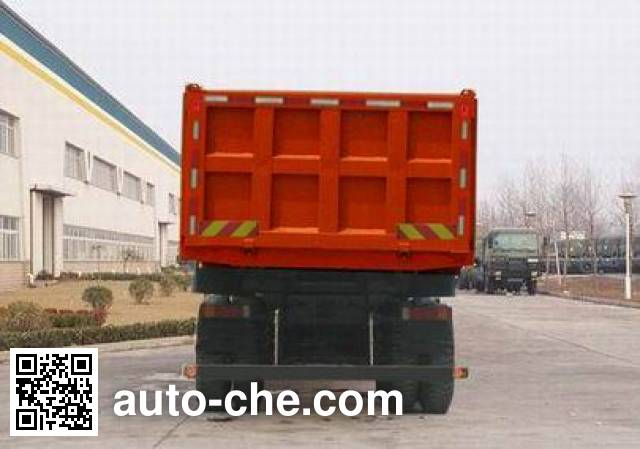

Photo gallery of the China dump truck Sida Steyr ZZ3256N3646C
