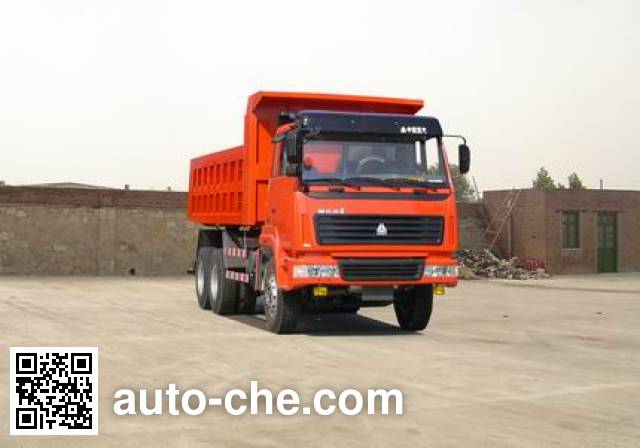

Sida Steyr ZZ3256N3246AN dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256N3246AN

ZZ3256N3246AN

Sida Steyr Chinese dump truck (tipper truck) ZZ3256N3246AN manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256N3246A chassis. Engine: WD615.69, cargo body is 5200 × 2300 × 1200 mm, max. speed is 75 km/h, cab seating capacity is  2, curb weight is of the China dump truck 12480 kg, wheelbase is 3225+1350 mm, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256N3246AN
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256N3246A

Engine of the China dump truck Sida Steyr ZZ3256N3246AN

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256N3246AN

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7868
Overall width (mm)2496
Overall height (mm)3280
Cargo Body Dimensions
Cargo body length (mm)5200
Cargo body width (mm)2300
Cargo body height (mm)1200
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12480
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.00
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3225+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1733
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)26

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256N3246AN
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256N3246AN (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional Steyr standard cab chassis, rear chassis overhang is 900mm.
(Note: possible inaccuracies)
