steyr tipper / dump truck

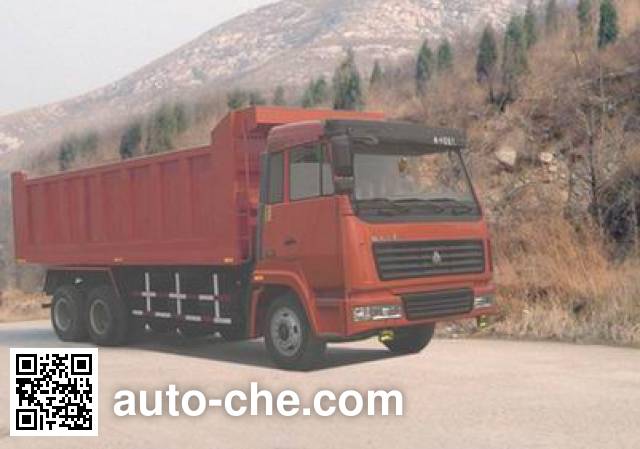

Sida Steyr ZZ3256M4146F dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256M4146F

ZZ3256M4146F

Sida Steyr Chinese dump truck (tipper truck) ZZ3256M4146F manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256M4146F chassis. Cargo body is 6000 × 2300 × 1200/1500 mm, curb weight is of the China dump truck 12250, 12450 kg, gross vehicle weight is 25000 kg, engine: WD615.62 / WD615.87, wheelbase is 4100+1350 mm, cab seating capacity is  2, max. speed is 75 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256M4146F
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256M4146F

Engine of the China dump truck Sida Steyr ZZ3256M4146F

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87
Engine displacement (cc)9726 / 9726
Engine power (kW)196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256M4146F

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8855
Overall width (mm)2496
Overall height (mm)3270/3486
Cargo Body Dimensions
Cargo body length (mm)6000
Cargo body width (mm)2300
Cargo body height (mm)1200/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12250, 12450
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04, 1.01
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4100+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1845
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)24

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256M4146F
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256M4146F (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 310kg.
(Note: possible inaccuracies)
