steyr tipper / dump truck

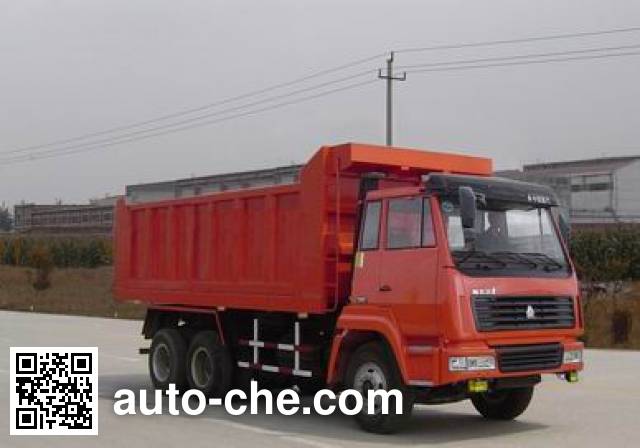

Sida Steyr ZZ3256M3646B dump truck manufactured by Sinotruk Jinan Truck Co., Ltd.

Sida Steyr dump truck ZZ3256M3646B

ZZ3256M3646B

Sida Steyr Chinese dump truck (tipper truck) ZZ3256M3646B manufactured by Sinotruk Jinan Truck Co., Ltd. (an automobile manufacturer in Jinan, Shandong Province, China; manufactures a range of , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3256M3646 chassis. Cargo body is 5600 × 2300 × 1000/1200/1300/1400/1500 mm, cab seating capacity is  2, wheelbase is 3600+1350 mm, engine: WD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87, gross vehicle weight is 25000 kg, max. speed is 75 km/h, curb weight is of the China dump truck 11890, 12030, 12100, 12170 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3256M3646B
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3256M3646

Engine of the China dump truck Sida Steyr ZZ3256M3646B

Engine Specifications of the China dump truck
Engine ModelWD615.61A / WD615.61A / WD615.67 / WD615.67 / WD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726 / 9726
Engine power (kW)193 / 193 / 206 / 206 / 196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3256M3646B

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8249
Overall width (mm)2496
Overall height (mm)3200/3416
Cargo Body Dimensions
Cargo body length (mm)5600
Cargo body width (mm)2300
Cargo body height (mm)1000/1200/1300/1400/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)11890, 12030, 12100, 12170
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3600+1350
Front and Rear Overhang
Front overhang (mm)1560
Rear overhang (mm)1739
Angle of Approach and Departure
Angle of approach (deg.)20
Angle of departure (deg.)27

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3256M3646B
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3256M3646B (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The only optional car chassis WD615.62 and WD615.87 engines. The car optional environmental lidded containers, cargo box cover quality 300kg. Curb weight but also for 12240kg. Rated quality but also for 12700,12630 kg.
(Note: possible inaccuracies)
