steyr tipper / dump truck

Sida Steyr ZZ3253N4441C1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3253N4441C1

ZZ3253N4441C1

Sida Steyr Chinese dump truck (tipper truck) ZZ3253N4441C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253N4441C1 chassis. Max. speed is 75 km/h, engine: WD615.95C / WD615.96C / WD615.95E / WD615.96E / WD615.95NE / WD615.96NE, curb weight is of the China dump truck 12410 kg, gross vehicle weight is 25000 kg, cab seating capacity is  2, rated capacity is 12460 kg, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, environmental standard is National III / Euro 3, wheelbase is 4400+1350 mm, without ABS, diesel fuel, cargo body is 6200 × 1000 × 2300 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3253N4441C1
Vehicle typeDump truck (tipper truck)
VIN
  • LZZAELNF×××××××××
  • LZZAELSF×××××××××
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3253N4441C1

Engine of the China dump truck Sida Steyr ZZ3253N4441C1

#Engine ModelEngine DisplacementEngine PowerEngine Manufacturer
1WD615.95C9726 cc249 kW (339 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
2WD615.96C9726 cc279 kW (380 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
3WD615.95E9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
4WD615.96E9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
5WD615.95NE9726 cc247 kW (336 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
6WD615.96NE9726 cc276 kW (376 hp)China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications
Fueldiesel fuel
Environmental standards complianceNational III / Euro 3

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253N4441C1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)9275
Overall width (mm)2496
Overall height (mm)3500
Cargo Body Dimensions
Cargo body length (mm)6200
Cargo body width (mm)1000
Cargo body height (mm)2300
Weights, Ground Pressure and Capacity
Rated capacity (kg)12460
Curb weight of the China dump truck (kg)12410
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.01
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base and Track
Wheelbase (mm)4400+1350
Front track (mm)2020, 1939
Rear track (mm)1820/1820, 1850/1850
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)2000
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)27

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3253N4441C1
Number of axles3
Number of tires10
Tires dimension11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3253N4441C1 (dump truck)
Max. speed75
ABSnone
Cab seating capacity2
Steeringsteering wheel
Leaf springs10 / 12

Additional Information

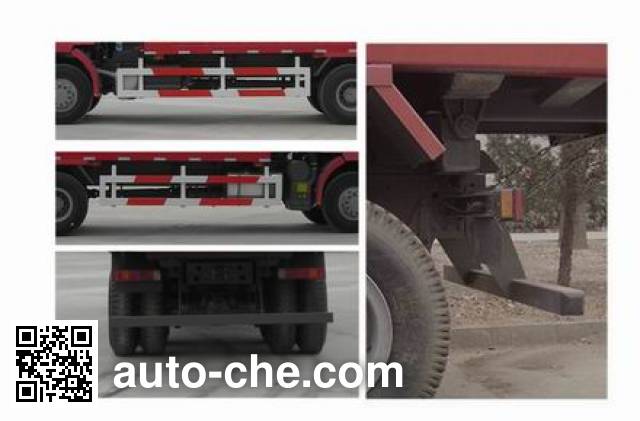

After unloading the car dump way. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

Photo gallery of the China dump truck Sida Steyr ZZ3253N4441C1

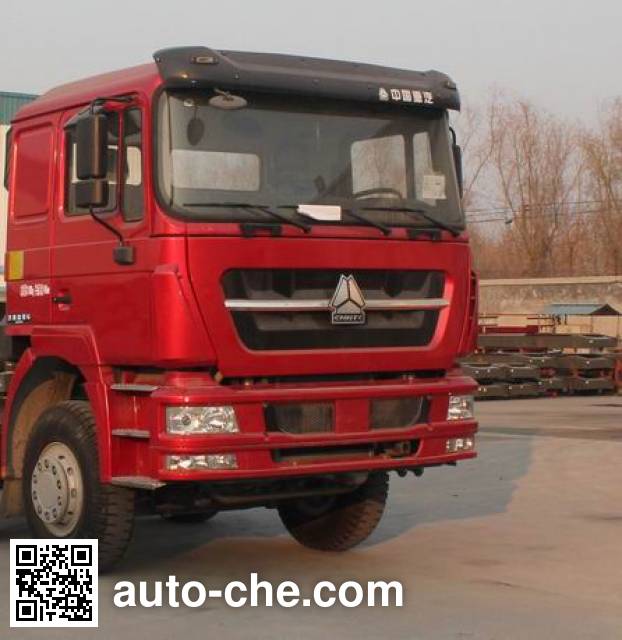

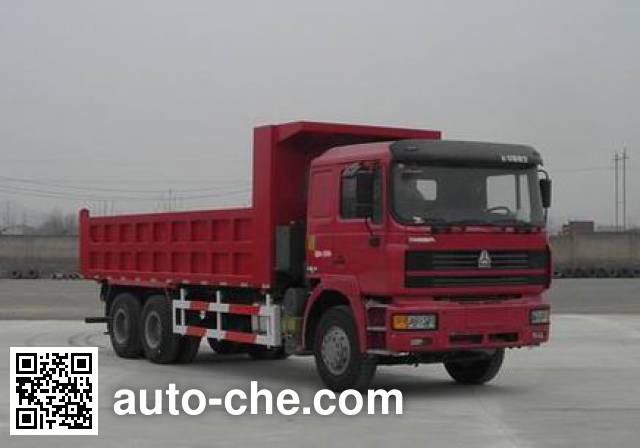

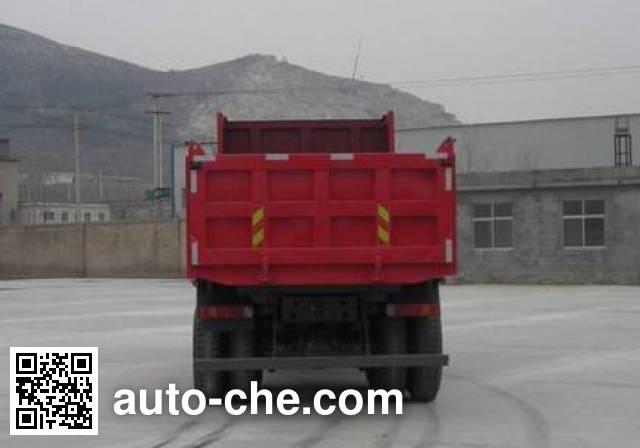

Sida Steyr dump truck ZZ3253N4441C1 Sida Steyr dump truck ZZ3253N4441C1 Sida Steyr dump truck ZZ3253N4441C1 Sida Steyr dump truck ZZ3253N4441C1
