steyr tipper / dump truck

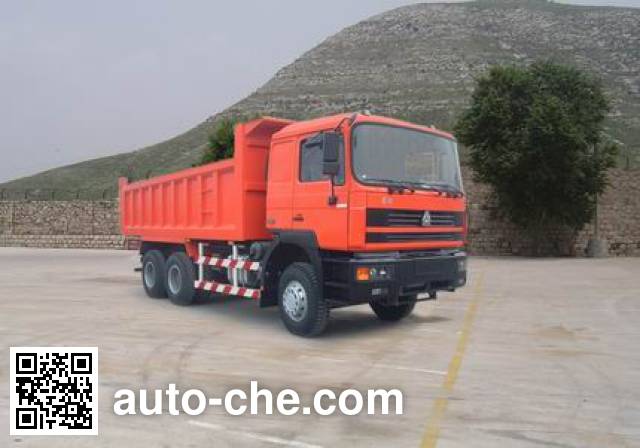

Sida Steyr ZZ3253N3841A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3253N3841A

ZZ3253N3841A

Sida Steyr Chinese dump truck (tipper truck) ZZ3253N3841A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ1253N3841F chassis. Curb weight is of the China dump truck 12110, 12300 kg, wheelbase is 3800+1350 mm, gross vehicle weight is 25000 kg, cab seating capacity is  2, cargo body is 5800 × 2300 × 1100 mm, engine: WD615.69, max. speed is 78 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3253N3841A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ1253N3841F

Engine of the China dump truck Sida Steyr ZZ3253N3841A

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253N3841A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8614
Overall width (mm)2490
Overall height (mm)3280
Cargo Body Dimensions
Cargo body length (mm)5800
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12110, 12300
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3800+1350
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)1939
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)30

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3253N3841A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3253N3841A (dump truck)
Max. speed78
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car needs a truncated rear overhang selected chassis to 900mm, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 190kg.
(Note: possible inaccuracies)
