Sida Steyr Chinese dump truck (tipper truck) ZZ3253N3241C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253N3241C1 chassis. Engine: WD615.95 / WD615.95E / WD615.95C / WD615.96 / WD615.96E / WD615.96C, without ABS, max. speed is 75 km/h, cargo body is 5200/4800 × 1250 × 2300 mm, rated capacity is 12810, 12640 kg, environmental standard is National III / Euro 3, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, diesel fuel, cab seating capacity is 2, gross vehicle weight is 25000 kg, curb weight is of the China dump truck 12060, 12230 kg, wheelbase is 3225+1350 mm.
Technical Specifications of the China dump truck Sida Steyr

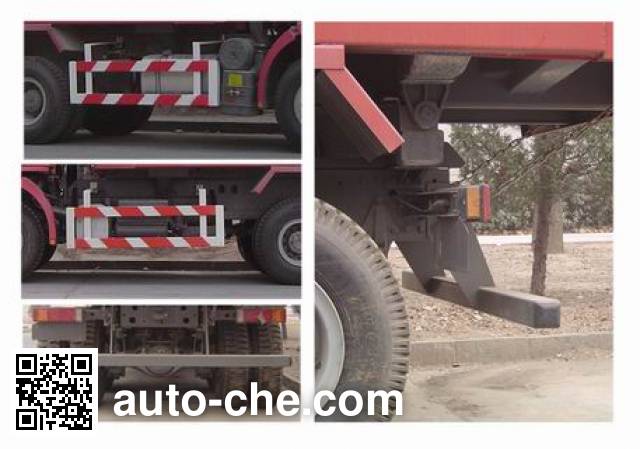

The car optional environmental lidded containers, respectively, with no roof curb weight and quality time with the cap, the cap on the quality of 170kg. Container dump mode after unloading. Vehicle length and box long rear overhang, departure angle parameter correspondence. When lifting the way for the first move, the vehicle height is 3496mm. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100, ground clearance of 530. Should be installed tachograph. (Note: possible inaccuracies)

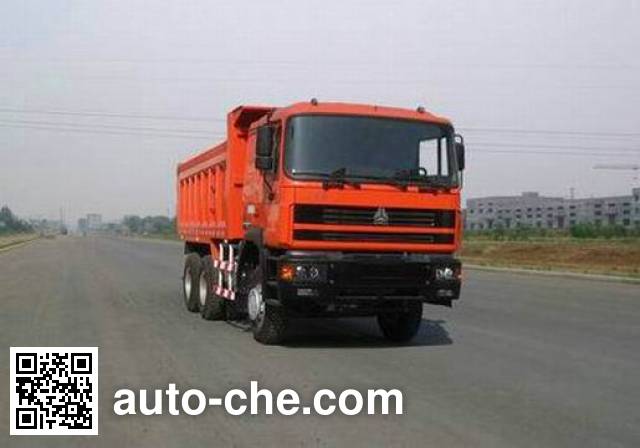

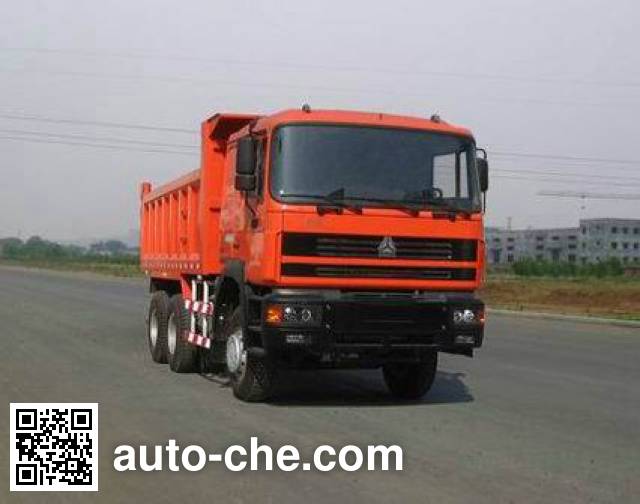

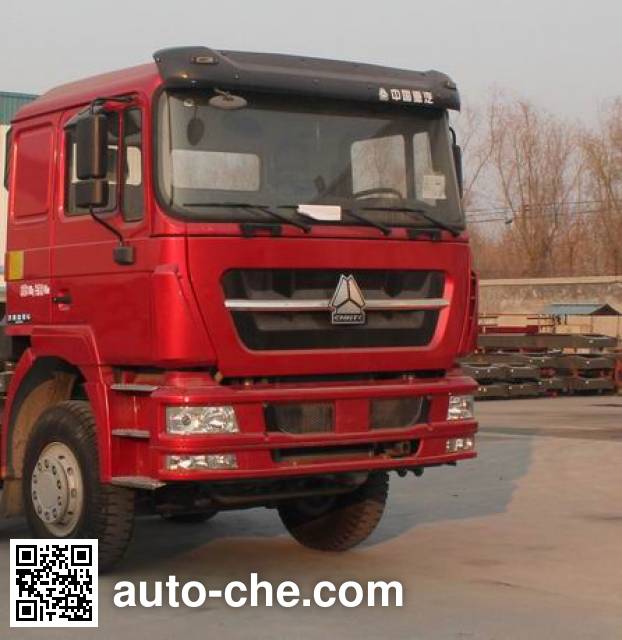

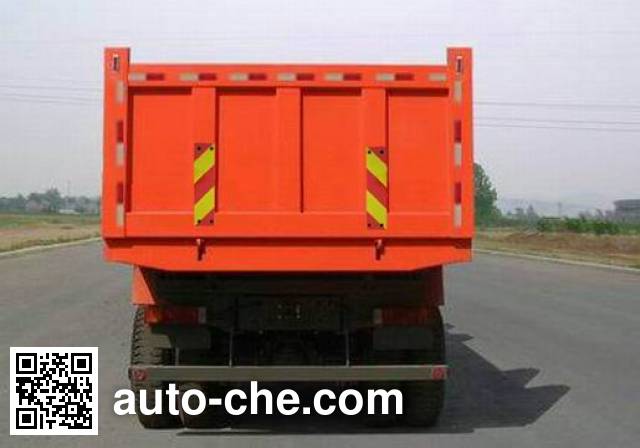

Photo gallery of the China dump truck Sida Steyr ZZ3253N3241C1
