Sida Steyr ZZ3253M5241C1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

ZZ3253M5241C1

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M5241C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M5241C1 chassis. Max. speed is 75 km/h, environmental standard is National III / Euro 3, rated capacity is 12370 kg, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, curb weight is of the China dump truck 12500 kg, cab seating capacity is  2, cargo body is 7000/7300 × 900 × 2300 mm, wheelbase is 5200+1350 mm, without ABS, diesel fuel, engine: WD615.92C / WD615.93C / WD615.92E / WD615.93E / WD615.97E / WD615.97C / WD615.92NE / WD615.97NE, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

Engine of the China dump truck Sida Steyr ZZ3253M5241C1

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M5241C1

Wheels and Tires

Misc. Specifications

Additional Information

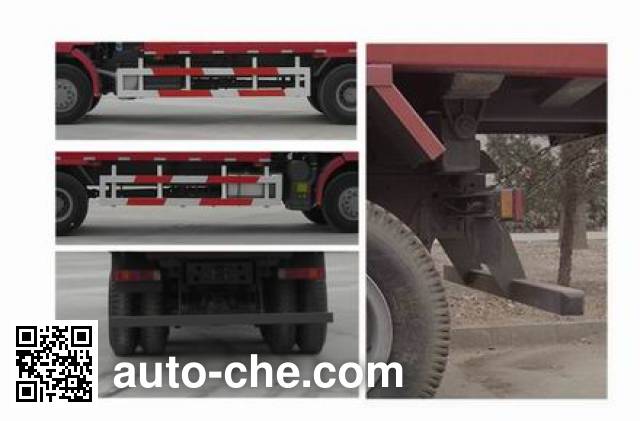

After unloading the car dump way. Vehicle length and box long rear overhang, departure angle parameter correspondence. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100, ground clearance of 530. Should be installed tachograph.
(Note: possible inaccuracies)

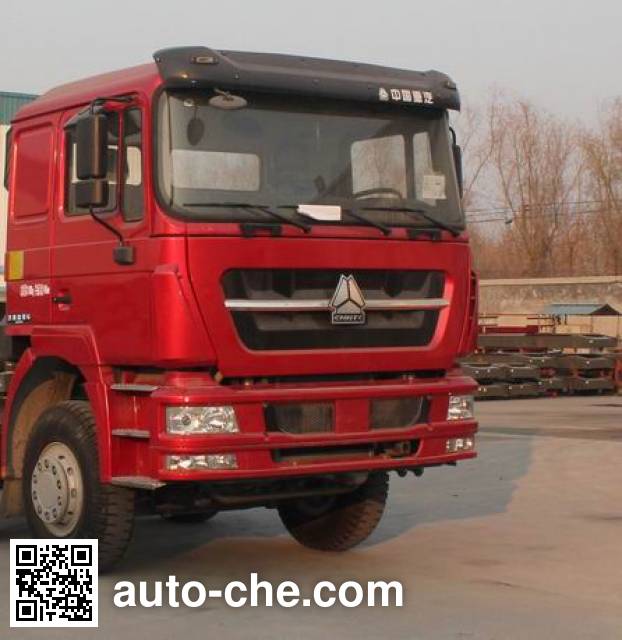

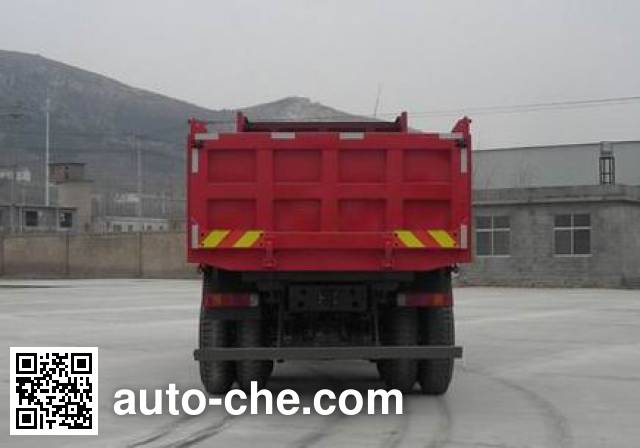

Photo gallery of the China dump truck Sida Steyr ZZ3253M5241C1
