Sida Steyr Chinese dump truck (tipper truck) ZZ3253M4241C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M4241C chassis. Without ABS, gross vehicle weight is 25000 kg, max. speed is 75 km/h, curb weight is of the China dump truck 12380 kg, wheelbase is 4200+1350 mm, diesel fuel, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, environmental standard is National III / Euro 3, cab seating capacity is 2, engine: WD615.92 / WD615.92E / WD615.92C / WD615.93 / WD615.93E / WD615.93C / WD615.97C / WD615.97E / WD615.92NE / WD615.97NE, rated capacity is 12490 kg, cargo body is 5800/6200 × 1070 × 2300 mm.
Technical Specifications of the China dump truck Sida Steyr
Container length and overall length, rear overhang, departure angle correspondence. The car optional green container with lid, cover the quality of 330kg (including the curb weight). When lifting the way for the first move, the vehicle height is 3496mm. Container dump mode after unloading. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100, ground clearance of 530. Should be installed tachograph. (Note: possible inaccuracies)

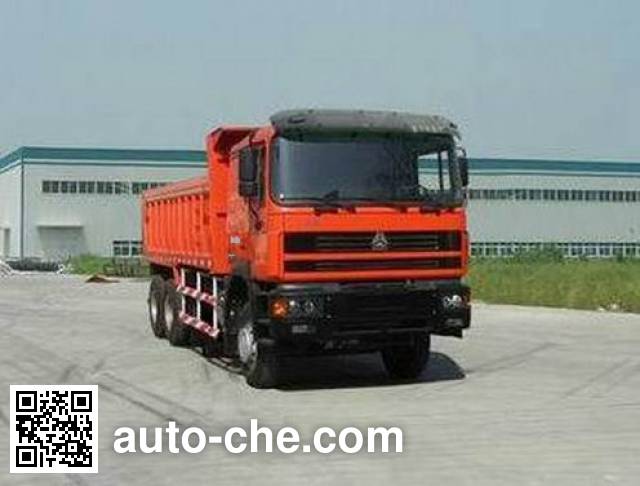

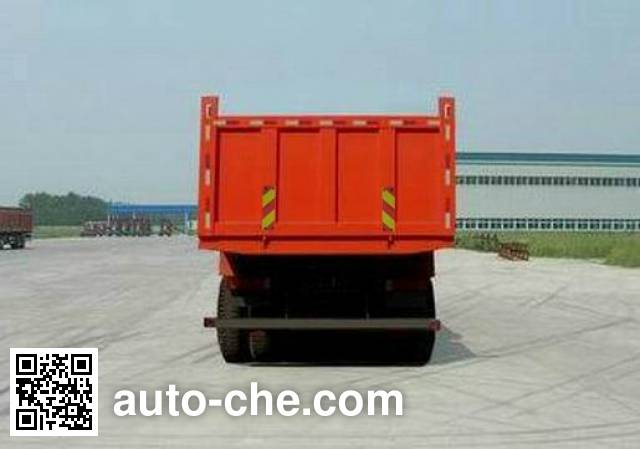

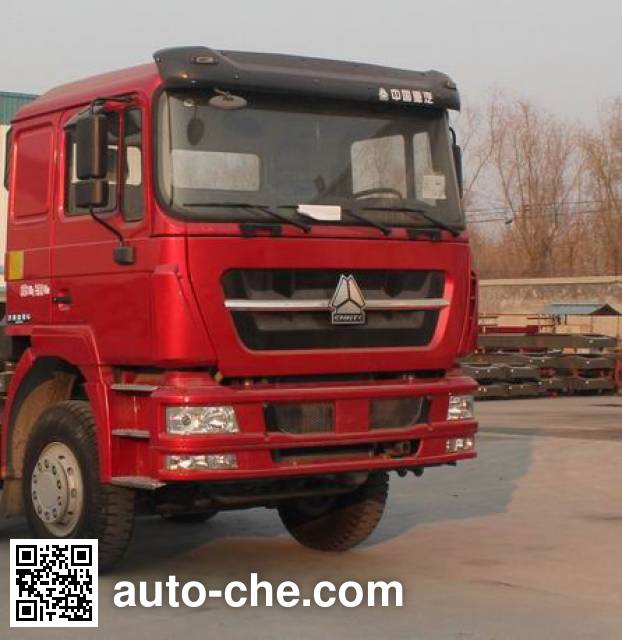

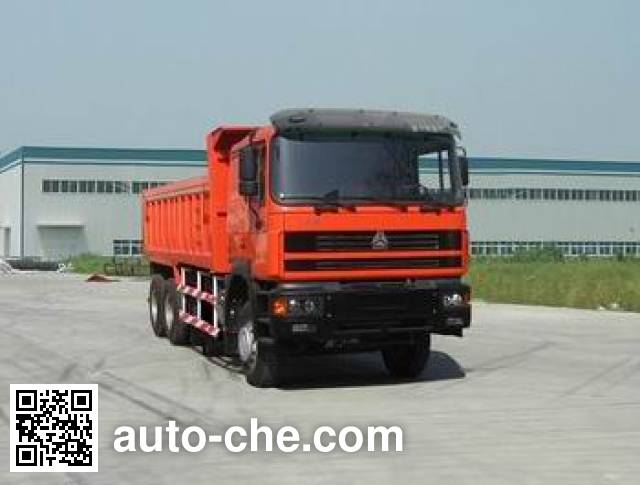

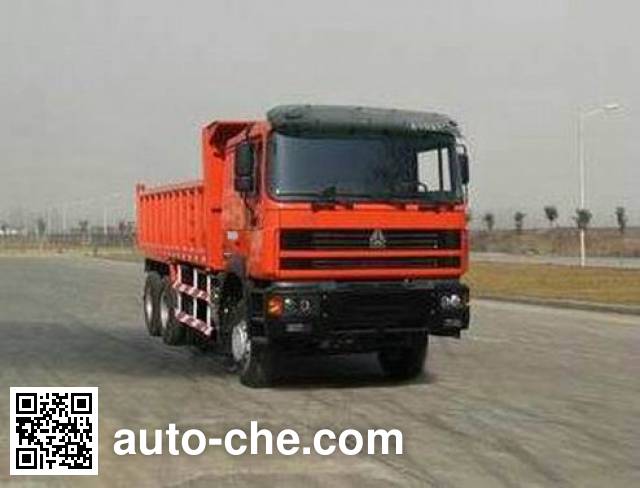

Photo gallery of the China dump truck Sida Steyr ZZ3253M4241C
