Sida Steyr Chinese dump truck (tipper truck) ZZ3253M4041C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M4041C chassis. Max. speed is 75 km/h, without ABS, curb weight is of the China dump truck 12350 kg, engine: WD615.92 / WD615.92E / WD615.92C / WD615.93 / WD615.93E / WD615.93C / WD615.97C / WD615.97E / WD615.92NE / WD615.97NE, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, environmental standard is National III / Euro 3, wheelbase is 4000+1350 mm, cargo body is 5600/6000 × 1100 × 2300 mm, diesel fuel, gross vehicle weight is 25000 kg, rated capacity is 12520 kg, cab seating capacity is 2.
Technical Specifications of the China dump truck Sida Steyr
Container length and overall length, rear overhang, departure angle correspondence. The car optional green container with lid, cover the quality of 320kg (including the curb weight). When lifting the way for the first move, the vehicle height is 3496mm. Container dump mode after unloading. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph. (Note: possible inaccuracies)

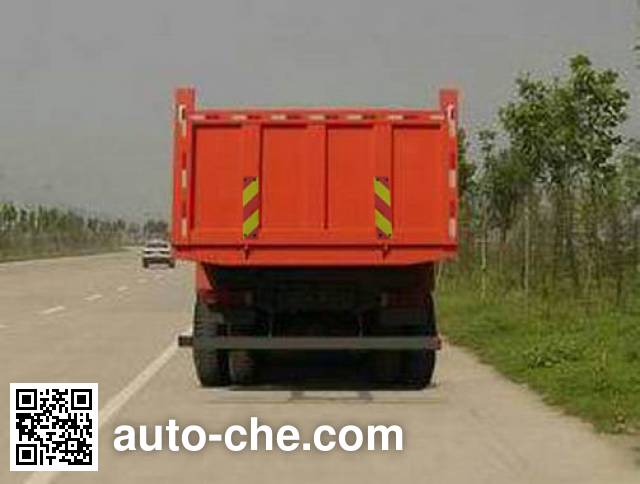

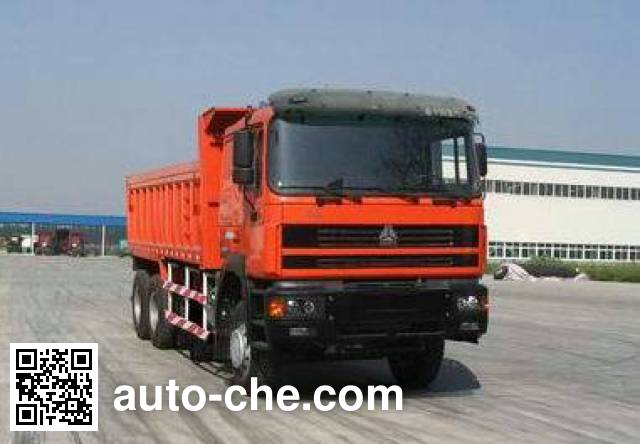

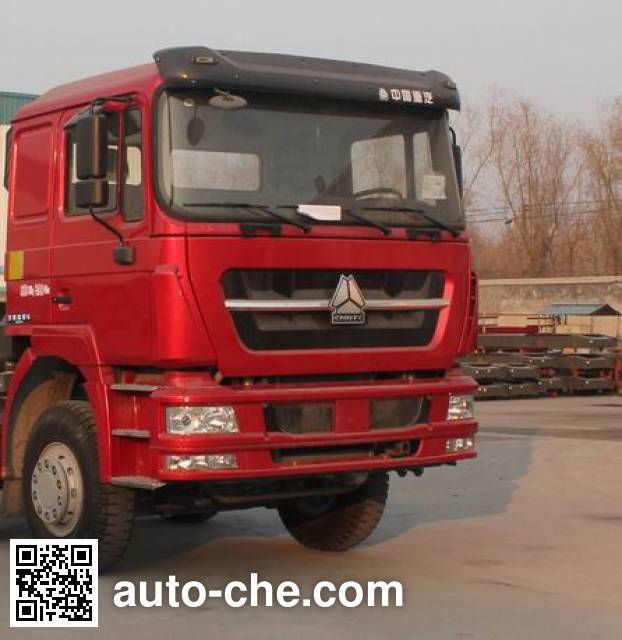

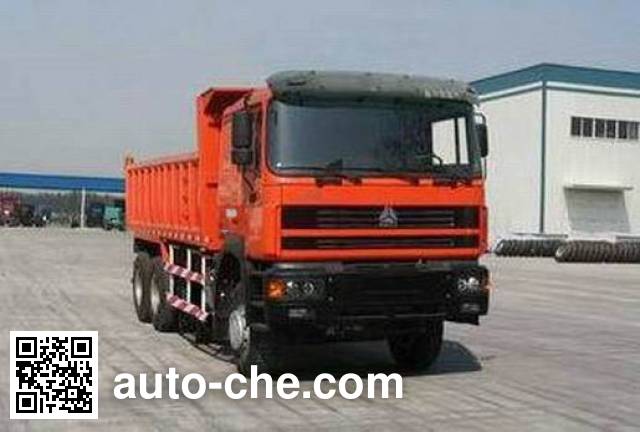

Photo gallery of the China dump truck Sida Steyr ZZ3253M4041C
