steyr tipper / dump truck

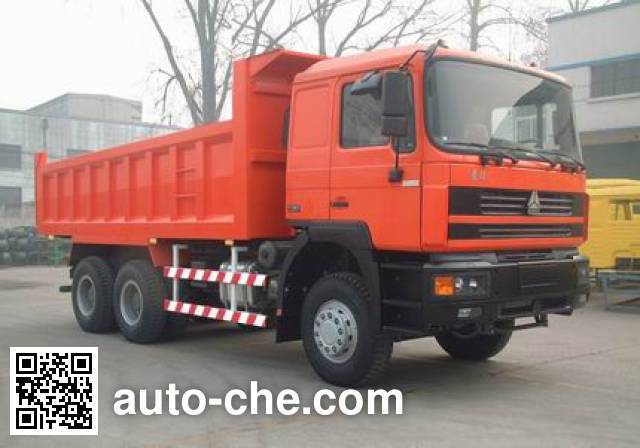

Sida Steyr ZZ3253M3841A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3253M3841A

ZZ3253M3841A

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M3841A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M3841 chassis. Engine: WD615.62 / WD615.62 / WD615.87 / WD615.87, max. speed is 76 km/h, curb weight is of the China dump truck 12110, 12300 kg, gross vehicle weight is 25000 kg, cab seating capacity is  2, wheelbase is 3800+1300, 3800+1350 mm, cargo body is 5800 × 2300 × 1100 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3253M3841A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3253M3841

Engine of the China dump truck Sida Steyr ZZ3253M3841A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M3841A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8614
Overall width (mm)2490
Overall height (mm)3280
Cargo Body Dimensions
Cargo body length (mm)5800
Cargo body width (mm)2300
Cargo body height (mm)1100
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12110, 12300
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3800+1300, 3800+1350
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)1939
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)30

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3253M3841A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3253M3841A (dump truck)
Max. speed76
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional wheelbase 3800 +1350 (mm) chassis, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 190kg. The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
