Sida Steyr ZZ3253M3641C dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

ZZ3253M3641C

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M3641C manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M3641C chassis. Curb weight is of the China dump truck 12280 kg, cargo body is 5400 × 1200 × 2300 mm, max. speed is 75 km/h, gross vehicle weight is 25000 kg, diesel fuel, tires are 11.00-20, 11.00R20, 12.00-20 18PR, 12.00R20 16PR, environmental standard is National III / Euro 3, without ABS, cab seating capacity is  2, rated capacity is 12590 kg, engine: WD615.92 / WD615.92E / WD615.92C / WD615.93 / WD615.93E / WD615.93C / WD615.97C / WD615.97E / WD615.92NE / WD615.97NE, wheelbase is 3600+1350 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

Engine of the China dump truck Sida Steyr ZZ3253M3641C

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M3641C

Wheels and Tires

Misc. Specifications

Additional Information

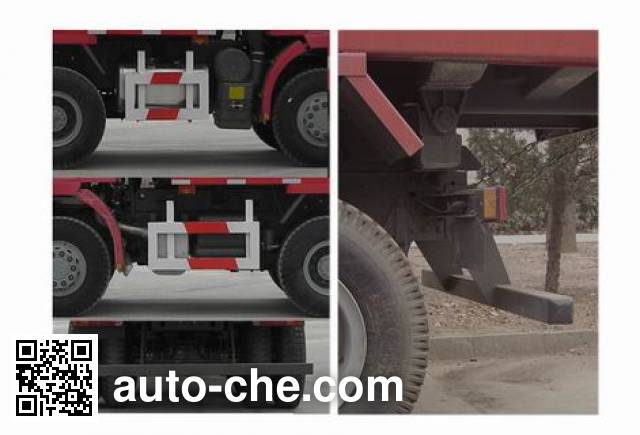

The car optional green container with lid, cover the quality of 300kg (including the curb weight). When lifting the way for the first move, the vehicle height is 3496mm. Container dump mode after unloading. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

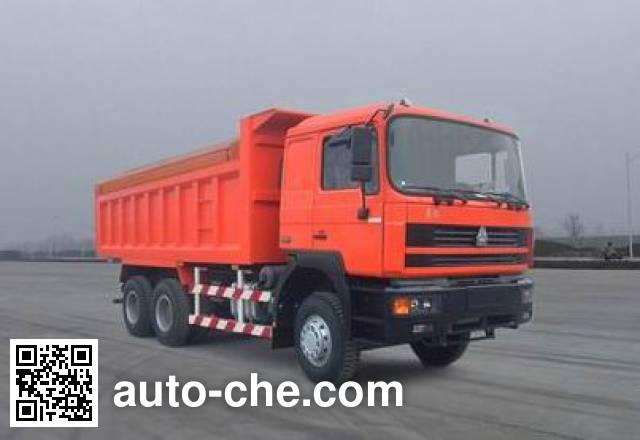

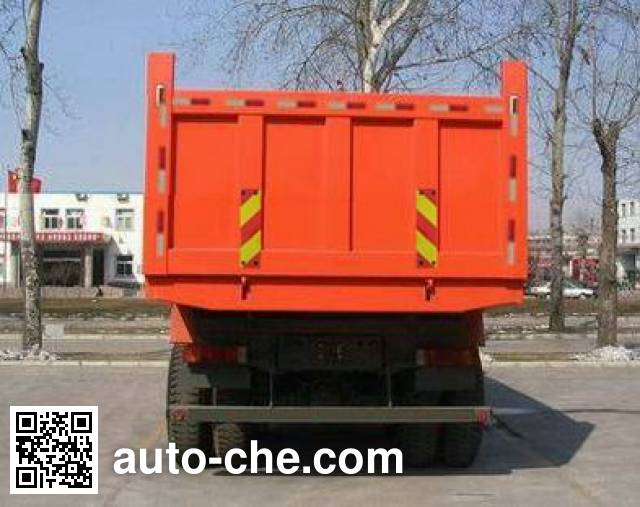

Photo gallery of the China dump truck Sida Steyr ZZ3253M3641C
