steyr tipper / dump truck

Sida Steyr ZZ3253M2941A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

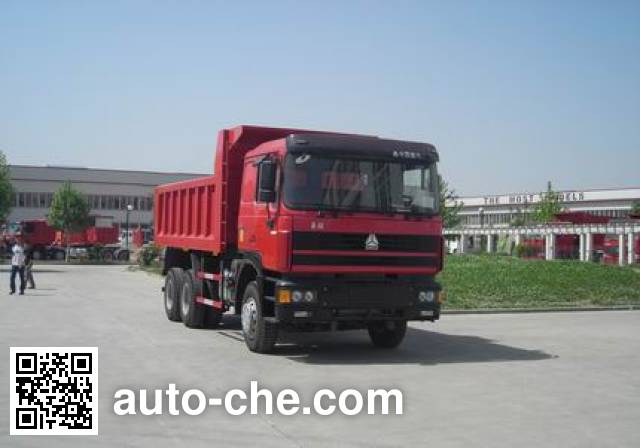

Sida Steyr dump truck ZZ3253M2941A

ZZ3253M2941A

Sida Steyr Chinese dump truck (tipper truck) ZZ3253M2941A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3253M2941 chassis. Curb weight is of the China dump truck 12130, 12290 kg, engine: WD615.62 / WD615.62 / WD615.87 / WD615.87, cargo body is 4600 × 2300 × 1200/1400 mm, wheelbase is 2925+1300, 2925+1350 mm, cab seating capacity is  2, gross vehicle weight is 25000 kg, max. speed is 78 km/h.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3253M2941A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3253M2941

Engine of the China dump truck Sida Steyr ZZ3253M2941A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.62 / WD615.87 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 196 / 213 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3253M2941A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7415
Overall width (mm)2490
Overall height (mm)3280/3496
Cargo Body Dimensions
Cargo body length (mm)4600
Cargo body width (mm)2300
Cargo body height (mm)1200/1400
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12130, 12290
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)2925+1300, 2925+1350
Front and Rear Overhang
Front overhang (mm)1525
Rear overhang (mm)1615
Angle of Approach and Departure
Angle of approach (deg.)29
Angle of departure (deg.)34

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3253M2941A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3253M2941A (dump truck)
Max. speed78
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional wheelbase 2925 +1350 (mm) chassis, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 160kg. The car is only optional Chinese heavy truck engines.
(Note: possible inaccuracies)
