steyr tipper / dump truck

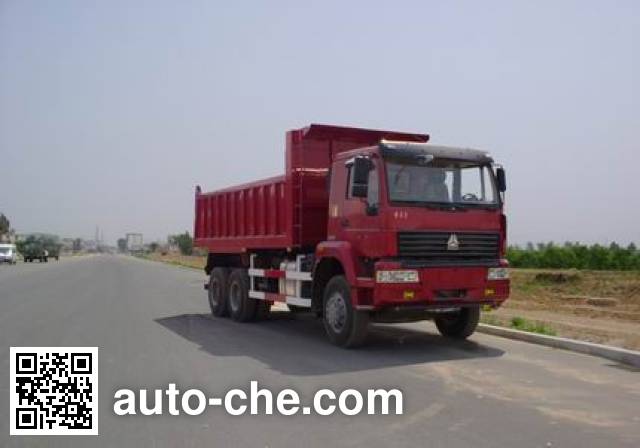

Sida Steyr ZZ3251N3241A1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251N3241A1

ZZ3251N3241A1

Sida Steyr Chinese dump truck (tipper truck) ZZ3251N3241A1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251N3241A chassis. Engine: WD615.69, curb weight is of the China dump truck 12110, 12280 kg, cab seating capacity is  2, max. speed is 74 km/h, wheelbase is 3200+1350 mm, cargo body is 5400 × 2300 × 1200 mm, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251N3241A1
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251N3241A

Engine of the China dump truck Sida Steyr ZZ3251N3241A1

Engine Specifications of the China dump truck
Engine ModelWD615.69
Engine displacement (cc)9726
Engine power (kW (hp))247 (336)

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251N3241A1

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7720
Overall width (mm)2490
Overall height (mm)3250
Cargo Body Dimensions
Cargo body length (mm)5400
Cargo body width (mm)2300
Cargo body height (mm)1200
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12110, 12280
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3200+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1850
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)25

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251N3241A1
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251N3241A1 (dump truck)
Max. speed74
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car is only optional Prince standard cab, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 170kg.
(Note: possible inaccuracies)
