Sida Steyr ZZ3251M4641C1 dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

ZZ3251M4641C1

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M4641C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M4641C1 chassis. Without ABS, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, cargo body is 7000/6500 × 950 × 2300 mm, wheelbase is 4550+1350 mm, engine: WD615.93E / WD615.93 / WD615.92 / WD615.92E / WD615.92C / WD615.93C / WD615.97E / WD615.97C / WD615.92NE / WD615.97NE, cab seating capacity is  2, environmental standard is National III / Euro 3, curb weight is of the China dump truck 12500 kg, rated capacity is 12370 kg, diesel fuel, max. speed is 75 km/h, gross vehicle weight is 25000 kg.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

Engine of the China dump truck Sida Steyr ZZ3251M4641C1

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M4641C1

Wheels and Tires

Misc. Specifications

Additional Information

Container dump mode after unloading. Cargo box lengths and car long rear overhang, departure angle parameter correspondence. When cartons before the move, the vehicle height 3450mm. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph.
(Note: possible inaccuracies)

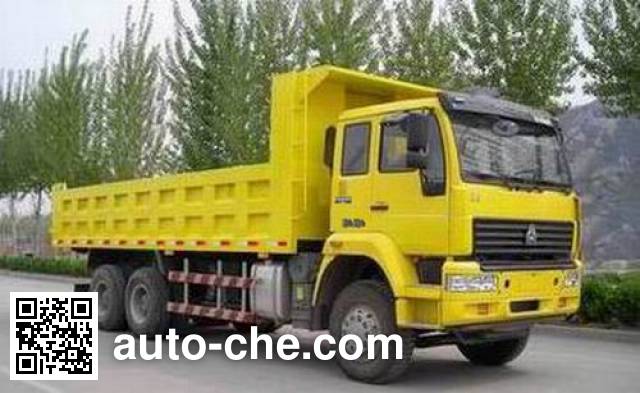

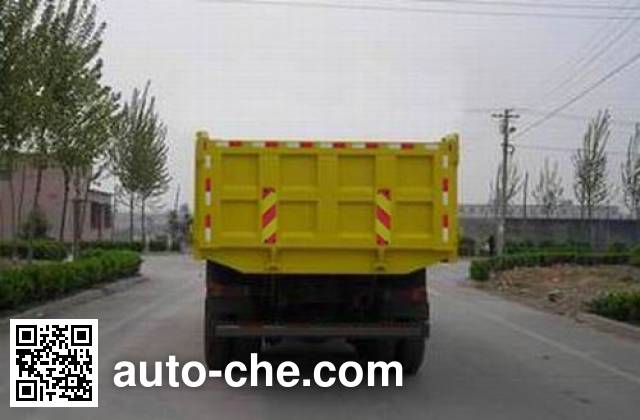

Photo gallery of the China dump truck Sida Steyr ZZ3251M4641C1
