ZZ3251M40C1C1
Sida Steyr Chinese dump truck (tipper truck) ZZ3251M40C1C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo Sida Steyr Sinotruk Sitrak Huanghe
Technical Specifications of the China dump truck Sida Steyr Vehicle Overview Engine of the China dump truck Sida Steyr ZZ3251M40C1C1 # Engine Model Engine Displacement Engine Power Engine Manufacturer 1 WD615.93E 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 2 WD615.93 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 3 WD615.92 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 4 WD615.92E 9726 cc 196 kW (267 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 5 WD615.92C 9726 cc 198 kW (270 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 6 WD615.93C 9726 cc 213 kW (290 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 7 WD615.97C 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk) 8 WD615.97E 9726 cc 221 kW (301 hp) China National Heavy Duty Truck Group Co., Ltd. (Sinotruk)
General Engine Specifications Fuel diesel fuel Environmental standards compliance National III / Euro 3
Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M40C1C1 Dimensions and Weight Specifications of the China dump truck Overall Dimensions of the China dump truck Overall length (mm) 8720 Overall width (mm) 2490 Overall height (mm) 3250 Cargo Body Dimensions Cargo body length (mm) 6200 Cargo body width (mm) 1100 Cargo body height (mm) 2300 Weights, Ground Pressure and Capacity Rated capacity (kg) 12870 Curb weight of the China dump truck (kg) 12000 Gross vehicle weight (kg) 25000 Load factor (payload to weight ratio) 1.08 Axle load distribution (kg) 6660/6880/11460 Wheel Base and Track Wheelbase (mm) 1800+4000 Front track (mm) 2047/2047, 1995/1995 Rear track (mm) 1820, 1850 Front and Rear Overhang Front overhang (mm) 1320 Rear overhang (mm) 1600 Angle of Approach and Departure Angle of approach (deg.) 20.5 Angle of departure (deg.) 40
Wheels and Tires Tires and Wheels of the China dump truck Sida Steyr ZZ3251M40C1C1 Number of axles 3 Number of tires 8 Tires dimension 11.00-20 18PR, 11.00R20 18PR, 12.00-20 20PR, 12.00R20 18PR
Misc. Specifications Miscellaneous Specifications Sida Steyr ZZ3251M40C1C1 (dump truck) Max. speed 75 ABS none Cab seating capacity 2 Steering steering wheel Leaf springs left 14 right 13 / left 14 right 13 / 9+6, 11 / 11 / 9+6, left 14 right 13 / left 14 right 13 / 10+8

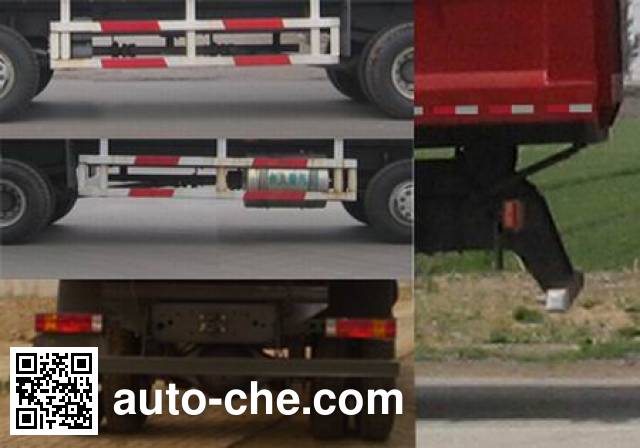

Additional Information Container dump mode after unloading. Optional new mask. Side guards made of material used Q235A, bolted connection is; rear protective device made of materials used Q235A, as bolted connections, cross-sectional dimensions of 100mm × 100mm, ground clearance is 530mm. Should be installed tachograph.(Note: possible inaccuracies)

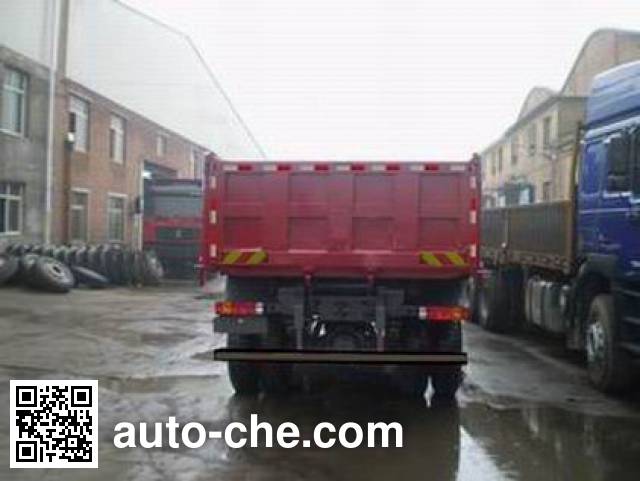

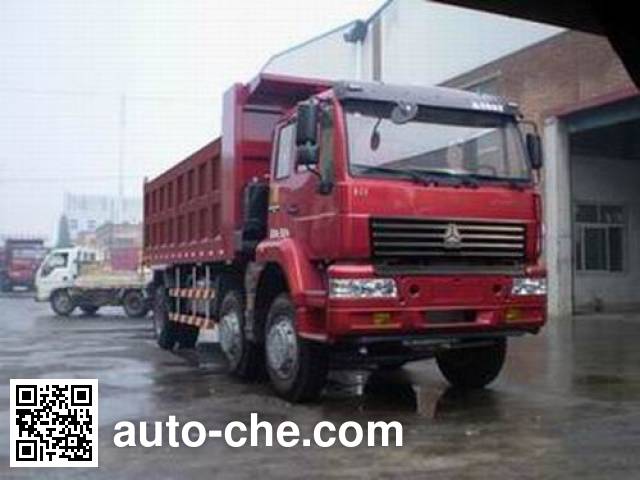

Photo gallery of the China dump truck Sida Steyr ZZ3251M40C1C1 See Also Sida Steyr ZZ3251N324GE1 (dump truck)
