steyr tipper / dump truck

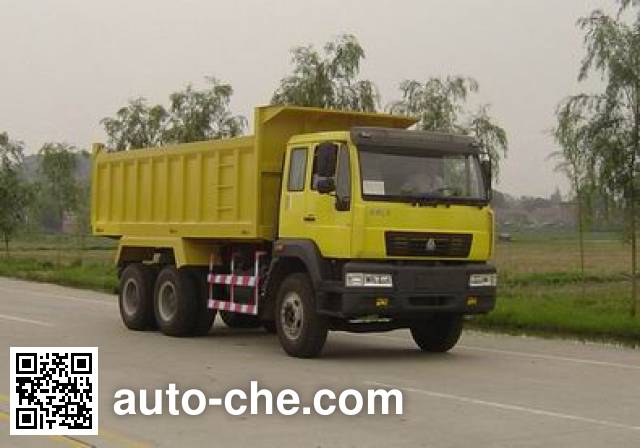

Sida Steyr ZZ3251M4041W dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M4041W

ZZ3251M4041W

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M4041W manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M4041W chassis. Cargo body is 5500 × 2300 × 1200/1400/1500 mm, max. speed is 67, 75 km/h, curb weight is of the China dump truck 12020, 12170, 12250 kg, cab seating capacity is  2, gross vehicle weight is 25000 kg, engine: WD615.62 / WD615.87 / WD615.62 / WD615.87, wheelbase is 4000+1350 mm.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M4041W
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M4041W

Engine of the China dump truck Sida Steyr ZZ3251M4041W

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87 / WD615.62 / WD615.87
Engine displacement (cc)9726 / 9726 / 9726 / 9726
Engine power (kW)196 / 213 / 196 / 213

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M4041W

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)8355
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)5500
Cargo body width (mm)2300
Cargo body height (mm)1200/1400/1500
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12020, 12170, 12250
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.04
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)4000+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1685
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)27

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M4041W
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M4041W (dump truck)
Max. speed67, 75
Cab seating capacity2
Steeringsteering wheel

Additional Information

The car optional green container with lid, cover the quality of 290kg.Extended cab car in front of a radiator mask.
(Note: possible inaccuracies)
