steyr tipper / dump truck

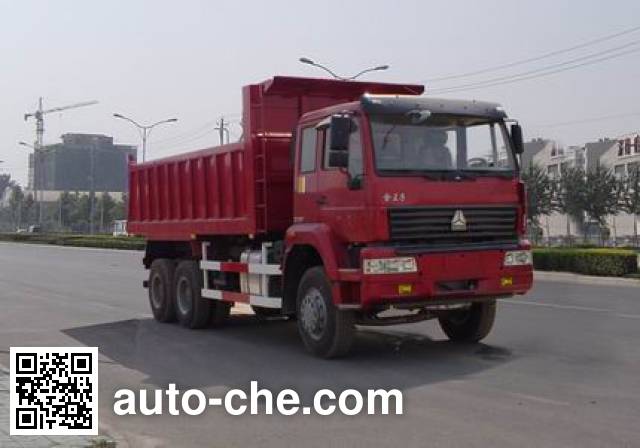

Sida Steyr ZZ3251M3441A dump truck manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd.

Sida Steyr dump truck ZZ3251M3441A

ZZ3251M3441A

Sida Steyr Chinese dump truck (tipper truck) ZZ3251M3441A manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of , , , vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M3441W chassis. Curb weight is of the China dump truck 12120, 12290 kg, max. speed is 75 km/h, engine: WD615.62 / WD615.87 / WD615.62 / WD615.87 / 6C260-2 / 6CL280-2, gross vehicle weight is 25000 kg, wheelbase is 3400+1350 mm, cargo body is 5100 × 2300 × 1200/1300 mm, cab seating capacity is  2.

Technical Specifications of the China dump truck Sida Steyr

Vehicle Overview

MakeSida Steyr
Vehicle modelZZ3251M3441A
Vehicle typeDump truck (tipper truck)
Manufacturer
CountryChina
Manufacturer's locationJinan, Shandong Province, China.
Vehicle chassisZZ3251M3441W

Engine of the China dump truck Sida Steyr ZZ3251M3441A

Engine Specifications of the China dump truck
Engine ModelWD615.62 / WD615.87 / WD615.62 / WD615.87 / 6C260-2 / 6CL280-2
Engine displacement (cc)9726 / 9726 / 9726 / 9726 / 8268 / 8820
Engine power (kW)196 / 213 / 196 / 213 / 192 / 206

Dimensions and Weights of the China dump truck Sida Steyr ZZ3251M3441A

Dimensions and Weight Specifications of the China dump truck
Overall Dimensions of the China dump truck
Overall length (mm)7740
Overall width (mm)2490
Overall height (mm)3250/3450
Cargo Body Dimensions
Cargo body length (mm)5100
Cargo body width (mm)2300
Cargo body height (mm)1200/1300
Weights, Ground Pressure
Curb weight of the China dump truck (kg)12120, 12290
Gross vehicle weight (kg)25000
Load factor (payload to weight ratio)1.06, 1.03
Axle load distribution (kg)7000/18000  (tandem axle)
Wheel Base
Wheelbase (mm)3400+1350
Front and Rear Overhang
Front overhang (mm)1320
Rear overhang (mm)1670
Angle of Approach and Departure
Angle of approach (deg.)20.5
Angle of departure (deg.)28

Wheels and Tires

Tires and Wheels of the China dump truck Sida Steyr ZZ3251M3441A
Number of axles3

Misc. Specifications

Miscellaneous Specifications Sida Steyr ZZ3251M3441A (dump truck)
Max. speed75
Cab seating capacity2
Steeringsteering wheel

Additional Information

High box and vehicle height parameters correspond, respectively, with no roof curb weight and quality time with the cap. The car optional green container with lid, cover the quality of 170kg. The car is not an option Weichai engines.
(Note: possible inaccuracies)
