Sida Steyr Chinese dump truck (tipper truck) ZZ3251M3241C1 manufactured by Sinotruk Jinan Commercial Vehicle Co., Ltd. (a commercial vehicle manufacturer in Jinan, Shandong Province, China; manufactures a range of Sinotruk Howo, Sida Steyr, Sinotruk Sitrak, Huanghe vehicles, including dump trucks); the dump truck (tipper truck) based on ZZ3251M3241C1 chassis. Max. speed is 75 km/h, diesel fuel, without ABS, curb weight is of the China dump truck 12170 kg, rated capacity is 12700 kg, tires are 11.00-20 18PR, 11.00R20 18PR, 12.00-20 18PR, 12.00R20 16PR, wheelbase is 3200+1350 mm, environmental standard is National III / Euro 3, cargo body is 5000/4800 × 1200/1300 × 2300 mm, cab seating capacity is 2, engine: WD615.93E / WD615.93 / WD615.92 / WD615.92E / WD615.92C / WD615.93C / WD615.97E / WD615.97C / WD615.92NE / WD615.97NE, gross vehicle weight is 25000 kg.
Technical Specifications of the China dump truck Sida Steyr

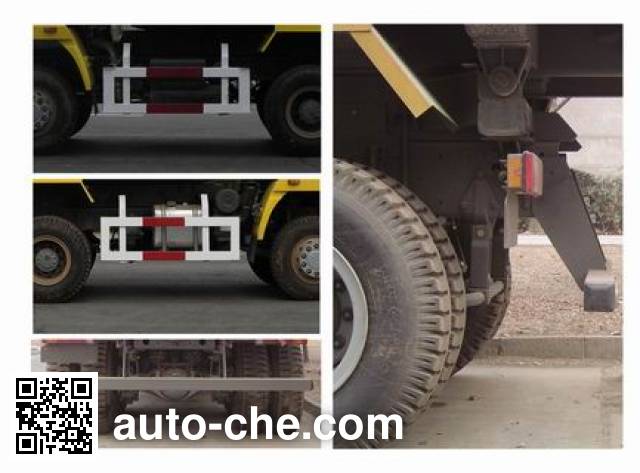

Container dump mode after unloading. Cargo box lengths and car long rear overhang, departure angle parameter correspondence. Box height and vehicle height parameters correspond. The new car is optional mask. Materials used side guards Material: Q235A, connection bolt connection. The rear guard of the materials used Material: Q235A, connection to bolt connection, cross section size is 100 × 100mm, ground clearance is 530mm. Should be installed tachograph. (Note: possible inaccuracies)

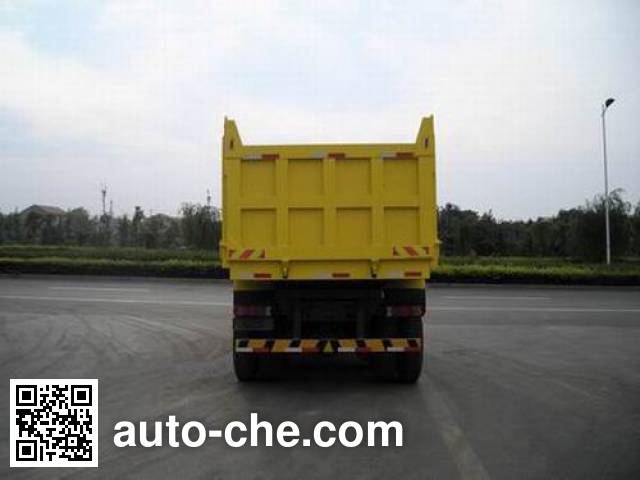

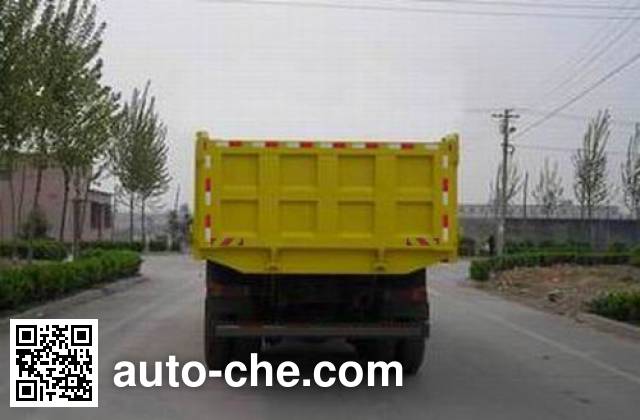

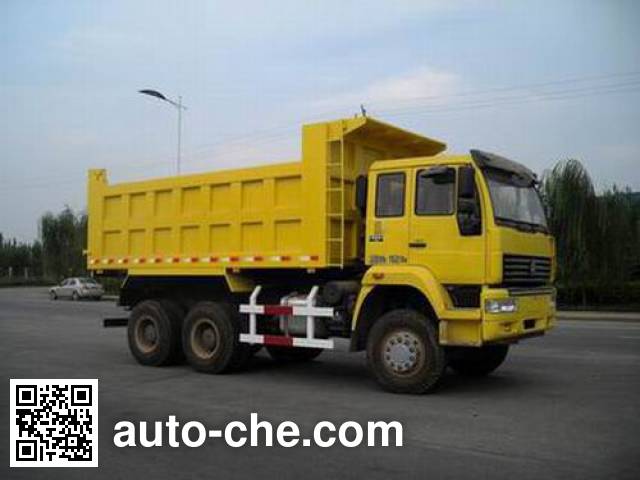

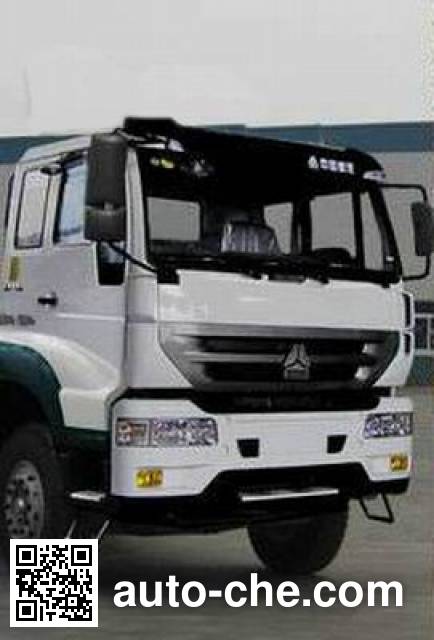

Photo gallery of the China dump truck Sida Steyr ZZ3251M3241C1
